Tapered Roller Bearing
This roller bearing supports axial and radial forces. The axial clearance affects the bearing's operation.
Technical Specifications
Product Overview
High-Performance Tapered Roller Bearings

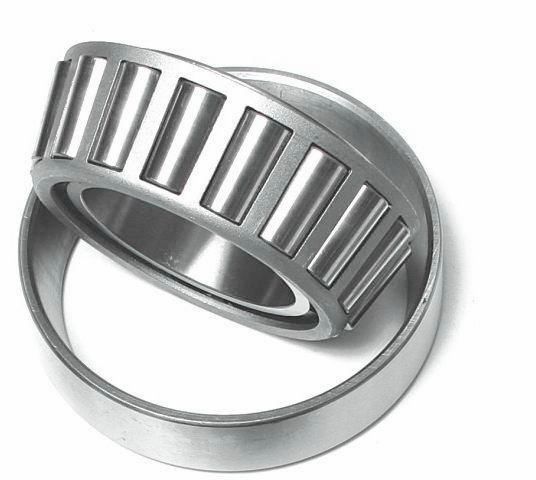

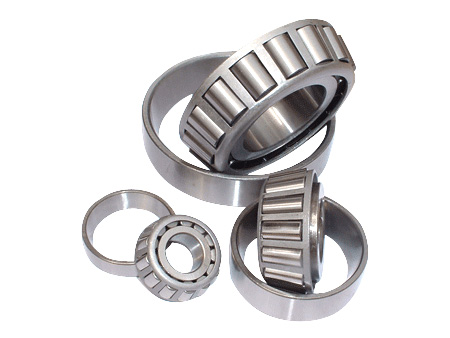

Tapered roller bearings are precision-engineered to support both combined radial and axial loads efficiently. Designed with converging raceways, these bearings ensure true rolling motion, which significantly reduces friction and wear in heavy-duty applications. Their robust construction makes them an ideal choice for demanding environments, including industrial gearboxes, machine tool spindles, and automotive axle systems.
Technical Specifications
Dimension Specifications
| Current Code | ID (mm) | OD (mm) | Width (mm) | Weight (kg) |
|---|---|---|---|---|
| 109KBE52X+CP6 | 190 | 340 | 204 | 75.6 |
| 31160X2 | 300 | 500 | 95 | 67.7 |
| 351160 | 300 | 500 | 205 | 125 |
| 351164 | 320 | 540 | 225 | 182 |
| 351168 | 340 | 580 | 242 | 235 |
| 351172 | 360 | 600 | 242 | 221 |
| 351176 | 380 | 620 | 242 | 250 |
| 351180 | 400 | 650 | 255 | — |
Key Features
- Operational Capabilities
- Radial Load SupportAxial Load SupportCombined Load HandlingSeparable DesignHigh Load Capacity
