Technical Specifications
Overview

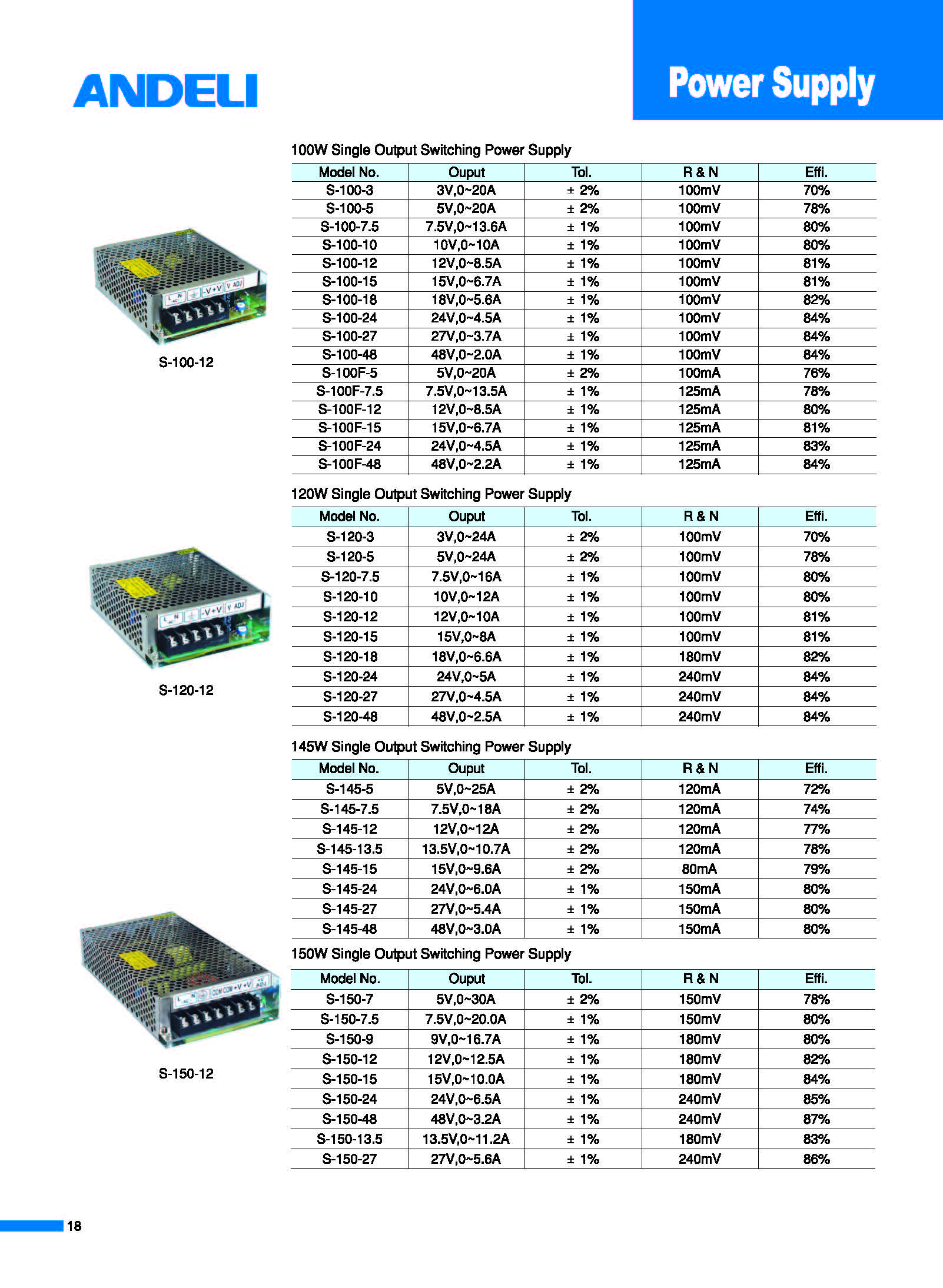

S Series High-Performance Switching Power Supplies
The S series provides a versatile and reliable solution for industrial and electronic power conversion needs. Available in power ratings from 100W to 150W, these units offer a wide range of single output voltage configurations to suit diverse system requirements. With high efficiency ratings and strict voltage tolerances, they ensure stable and efficient performance for professional applications.
Performance Metrics
Efficiency Ratings
70 %
Minimum Efficiency
87 %
Maximum Efficiency
Technical Specifications
Available Series Models
- S-100
- S-120
- S-145
- S-150
- Output Voltage Tolerance
- ±1%±2%
- Ripple and Noise Range
- 100mV to 240mV
Compliance
Safety and Compliance
CE
General Information
- Output Voltage Range
- 3V to 48V
