Technical Specifications
Overview

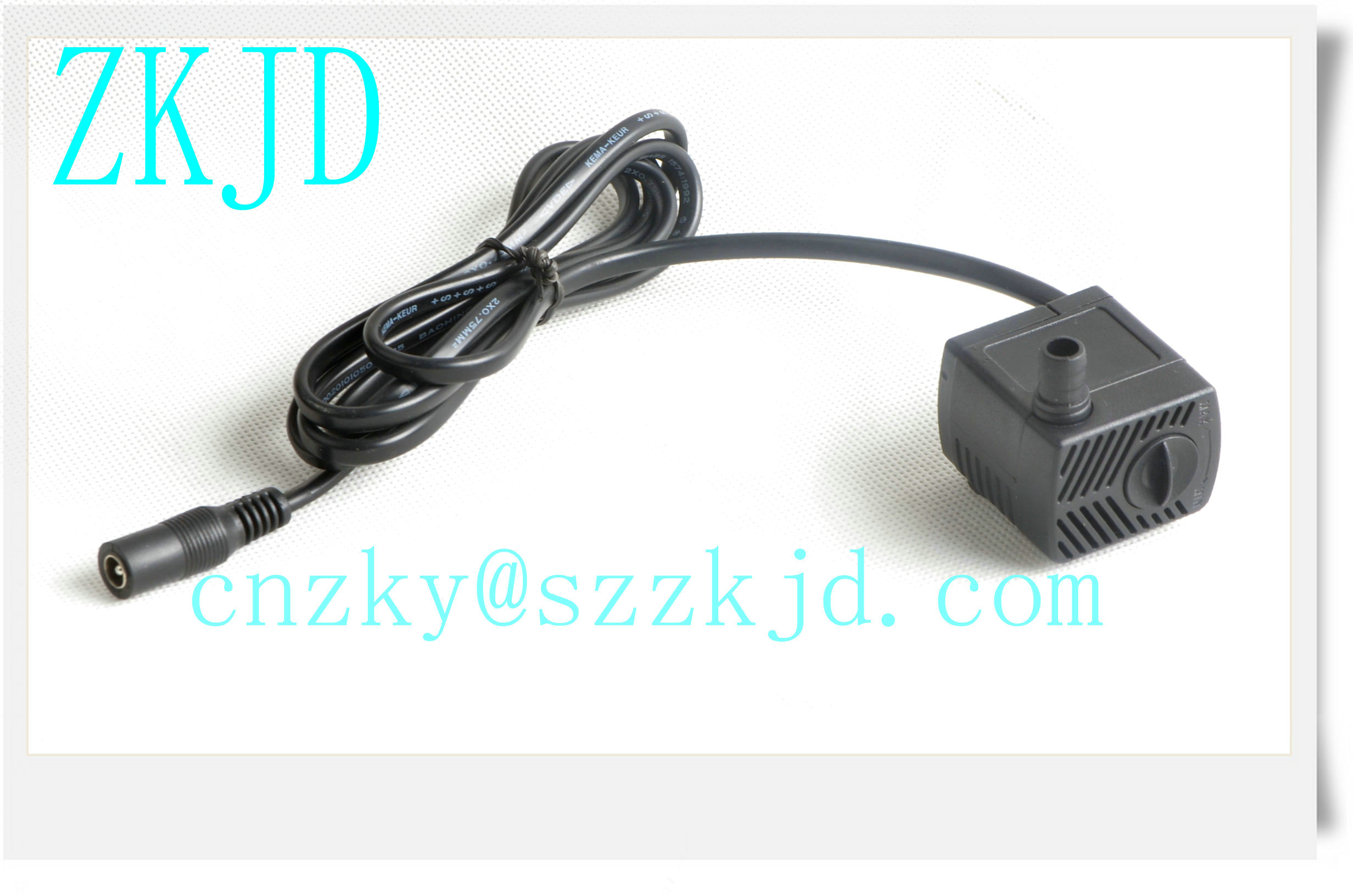

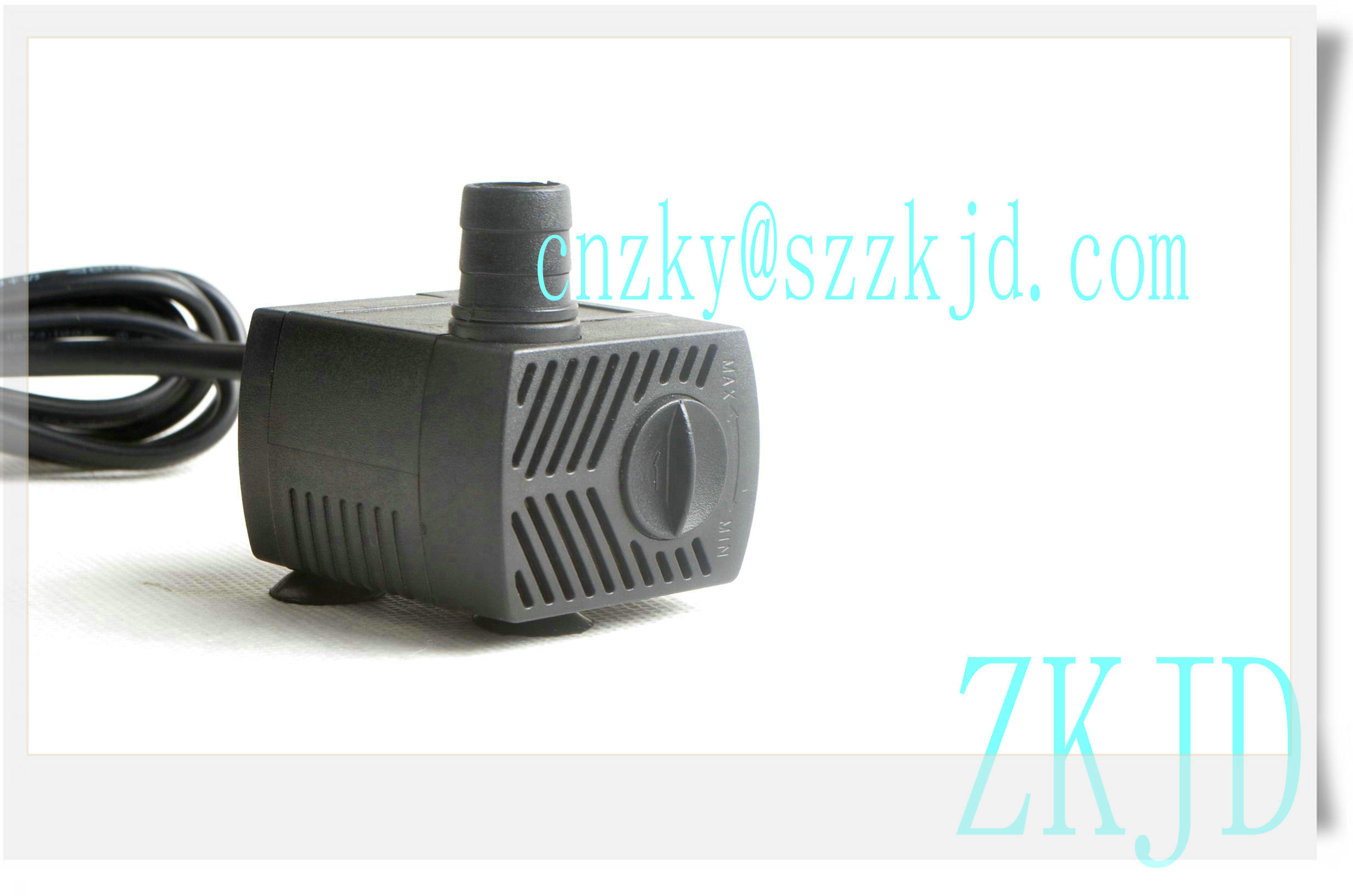

Compact Submersible Water Pump
This efficient brushless DC water pump is designed for reliable performance in both fresh and saltwater environments. With a maximum flow rate of 200L/H and a 1.6m head, it is an ideal solution for aquarium circulation, hydroponics, and filtration systems. Its durable construction and quiet operation ensure long-term reliability for demanding aquatic applications.
Performance
Performance Metrics
200 L/H
Max Water Flow
1.6 m
Max Static Head
4.8 W
Power Consumption
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 12V DC |
| Max Rated Current | 0.4A |
| Power Sources | Solar, Battery, Adapter, DC Source |
Physical Construction
- Dimensions: 43 x 38 x 30 mm
- Weight: 0.11 kg
- Material: ABS Plastic
- Driving Method: Brushless Permanent Magnetic
Operational Details
Operational Limits
- Max Operating Temperature: 60°C
- Noise Level: <35dB
- Expected Lifespan: >30,000 hours
- Environmental Ratings
- IP68 SubmersibleFreshwater CompatibleSaltwater CompatibleDry Run Protection
