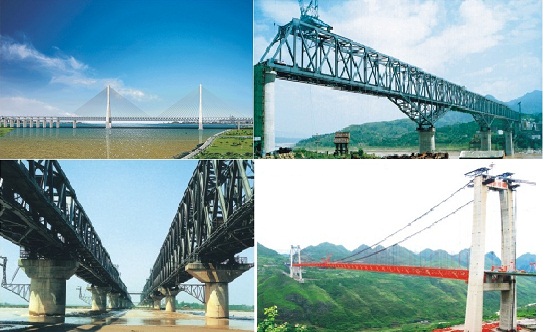

Steel Trussed Girder Bridge
Steel trussed girder bridges are structural marvels designed for long spans and efficient load distribution. The design incorporates interconnected steel members in a triangular pattern, ensuring strength and stability.
Technical Specifications
Overview
Structural Engineering Excellence
The Steel Trussed Girder Bridge is a sophisticated structural solution designed for efficient load distribution and long-span capability. Utilizing a rigid framework of interconnected steel members in triangular patterns, it maximizes strength and stability while optimizing material usage. This versatile design is suitable for diverse terrains and challenging landscapes, providing reliable infrastructure for vehicle and pedestrian transport.
Technical Features
- Load Distribution
- Interconnected triangular steel member network
- Deck Construction Materials
- Reinforced ConcreteSteel
- Support Mechanism
- Robust piers and foundations
Applications
Suitable Environments
- Valley spans
- Waterway crossings
- Challenging terrains
Quality and Standards
Key Performance Benefits
High Strength-to-Weight RatioEfficient Load DistributionWeather ResistantStructural Integrity
