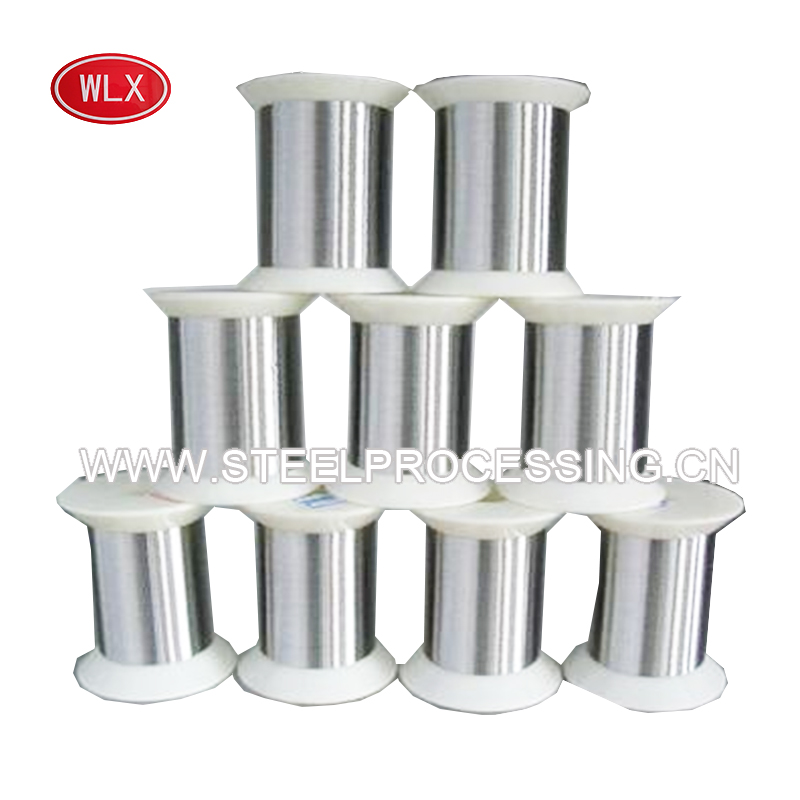

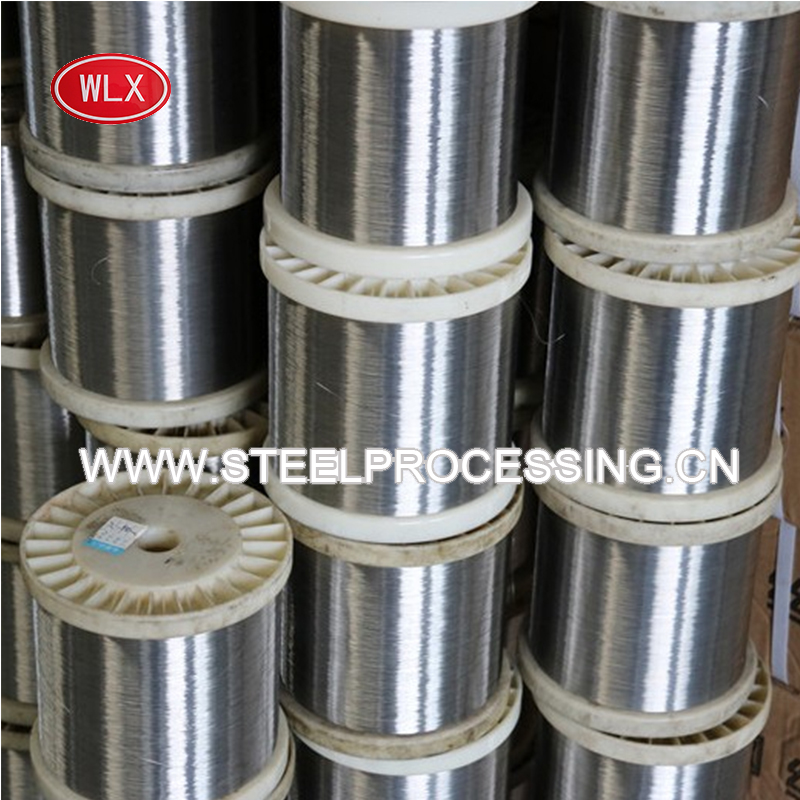

Stainless Steel Microfilament Wire
This stainless steel microfilament wire is manufactured to exacting standards. It offers consistent performance and reliability in demanding environments, making it suitable for use in electronics, medical devices, and precision engineering applications.
Technical Specifications
Product Overview
High-Performance Stainless Steel Microfilament
This premium stainless steel microfilament is engineered for high-precision applications ranging from aerospace and medicine to biochemical and industrial sectors. Thinner than hair and exceptionally soft, it provides high strength, stability, and superior corrosion resistance. With excellent electromagnetic shielding and radiation protection capabilities, this wire meets the most demanding technical requirements.
Technical Specifications
Diameter Range
0.018 mm
Minimum
5 mm
Maximum
Manufacturing Standards
- ASTM
- EN
- DIN
- JIS
Diameter Tolerance Schedule
| Diameter Range (mm) | Allowed Diff (mm) | Max Difference (mm) |
|---|---|---|
| 0.018-0.049 | +0.002/-0.001 | 0.001 |
| 0.050-0.074 | ±0.002 | 0.002 |
| 0.075-0.089 | ±0.002 | 0.002 |
| 0.090-0.109 | +0.003/-0.002 | 0.002 |
| 0.110-0.169 | ±0.003 | 0.003 |
| 0.200-0.299 | ±0.005 | 0.005 |
| 0.320-0.499 | ±0.006 | 0.006 |
- Available Material Grades
- 304304L316316L201410
Logistics
Packaging Options
CoilSpoolCarton
