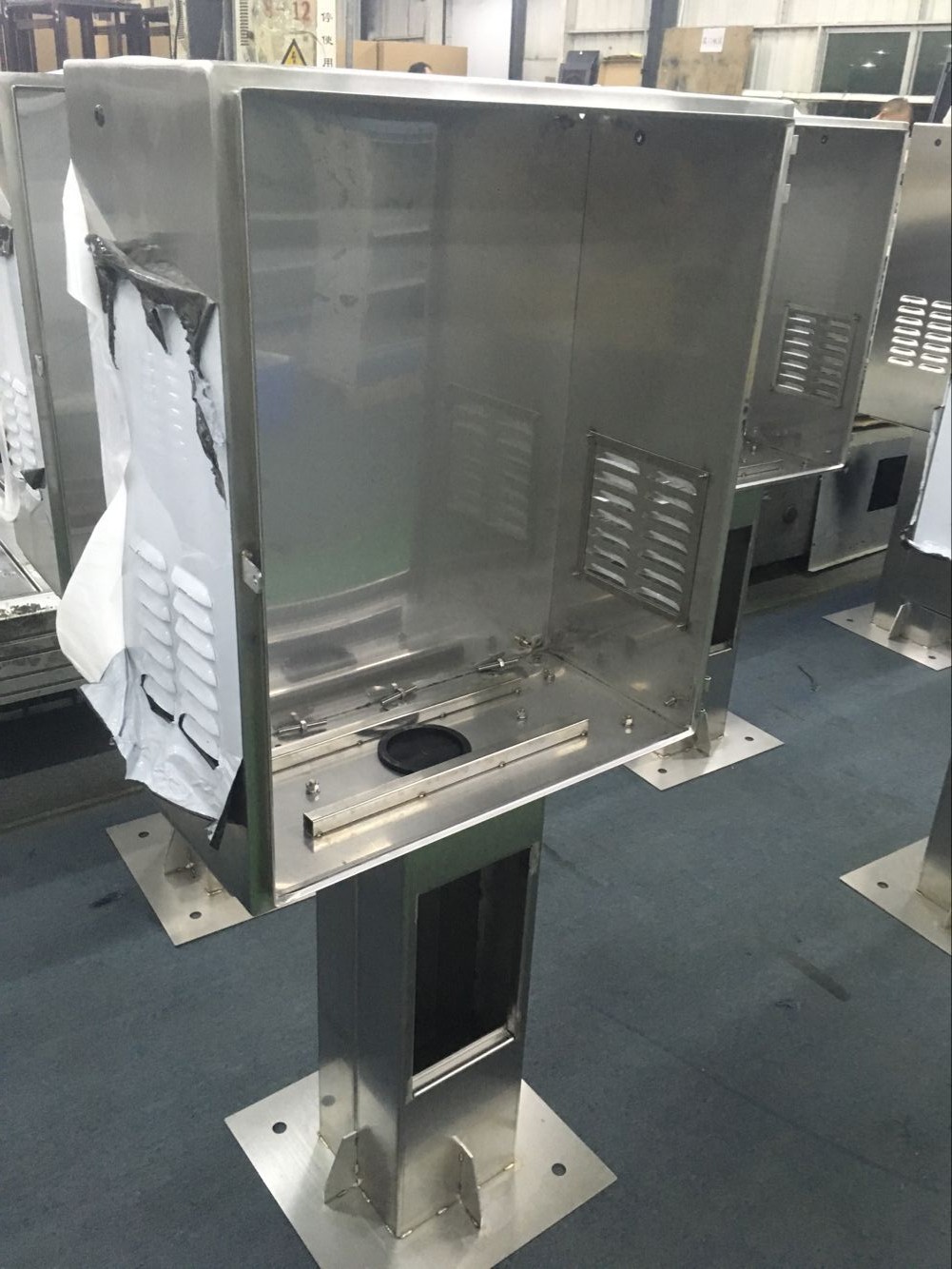

Stainless Steel Equipment Enclosure with Pedestal
This free-standing stainless steel enclosure is designed to house sensitive equipment. It features ventilation louvers, a secure mounting base, and a service access opening in the pedestal.
Technical Specifications
Overview
Robust Industrial Protection
This Stainless Steel Equipment Enclosure is engineered for high-performance protection of sensitive electronics in industrial and outdoor environments. Featuring a reliable structure with a static loading capacity of 800kg, it combines durability with flexibility through adjustable feet and castors. The design ensures efficient assembly and maintenance with removable doors and panels, alongside integrated ventilation for optimal thermal management.
Physical Construction
Material Specifications
| Component | Material Type | Thickness |
|---|---|---|
| Mounting Profile | SPCC Cold Rolled Steel | 2.0mm |
| Other Components | SPCC Cold Rolled Steel | 1.2mm - 1.5mm |
| Main Body | Stainless Steel | Customized |
Surface Treatment
DegreasingPicklingPhosphoricCleaningPower Coated
Performance & Capacity
Key Performance Metrics
800 kg
Static Loading Capacity
Design & Accessibility
Door & Panel Features
- International popular tempered glass front door
- Optional steel rear door
- Removable side panels for easy access
- Removable front and rear doors
- Finish Type
- Brushed stainless steel finish
Installation & Mobility
- Mobility & Fixing
- Adjustable FeetCastors AvailablePre-drilled Mounting BasePedestal Mounted
Environmental Management
Thermal & Cable Management
- Top cover cable entry
- Bottom panel cable entry
- Integrated bottom ventilation function
- Ventilation louvers for thermal management
