Technical Specifications
Overview
High-Security Data Destruction

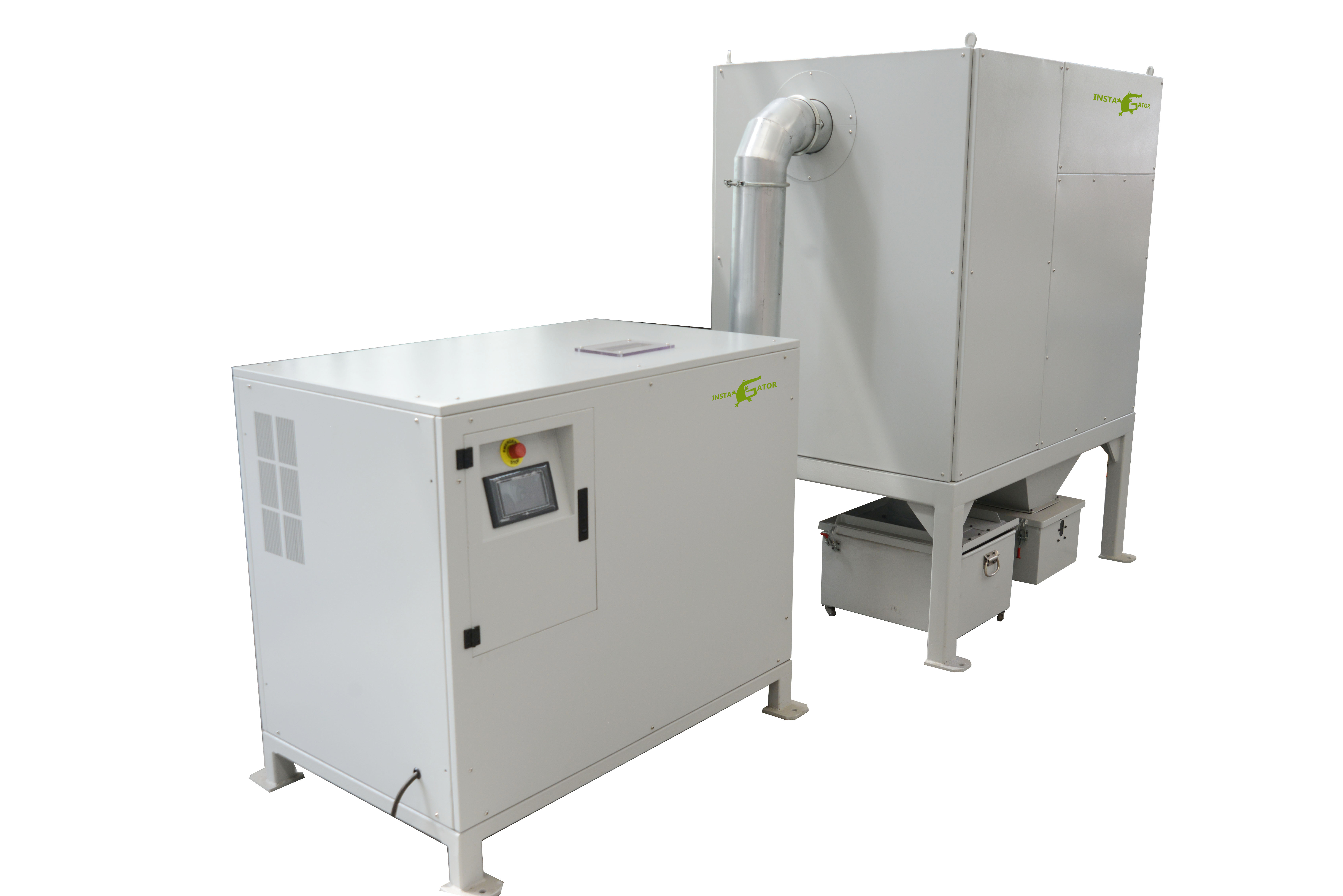

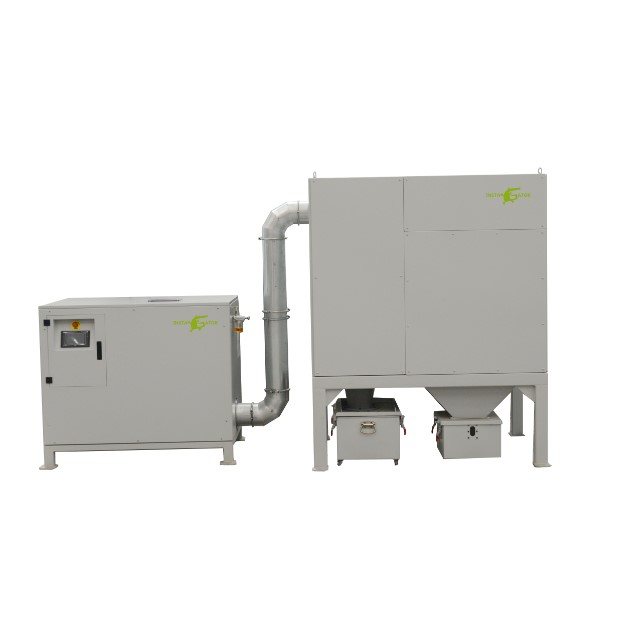

The SPD300 is an industrial-grade disintegration system engineered for the permanent destruction of sensitive data storage media. Utilizing a two-stage process, it first shreds material via a two-shaft mechanism before passing it through a hammer mill to achieve particle sizes as fine as 1x1mm. Designed for heavy-duty environments, this machine features integrated dust filtration and smart PLC controls to ensure safe, compliant, and efficient operation.
Performance & Capacity
Throughput Metrics
2,000 pcs/hr
SSD Chips (1x1mm)
1,200 pcs/hr
CDs (2x2mm)
Compatible Materials
SSD ChipsMemory ChipsCDsDVDsID CardsCredit Cards
- Security Levels (DIN 66399)
- E-6O-6F-5T-7
Technical Specifications
Power & Electrical
| Parameter | Value |
|---|---|
| Total Power | 8.25 kW |
| Voltage | 380 V |
| Frequency | 50 Hz |
Dimensions
- Crusher: 1180 x 720 x 1030 mm
- Dust Filtration Unit: 1440 x 910 x 1770 mm
Bin Capacity
- Particle Bin: 46 L
- Dust Bin: 26 L
- Weight
- 700 kg
Features
- Filtration System
- 4 filters, 6.2 m² total area, 320x600mm dimensions
- Safety & Control
- PLC ControlTouch Screen5 Safety SensorsSoundproof CottonDust Filtration
