SS304L Water Well Screen
This water well screen is constructed with a continuous length of triangular profile wire, fusion welded onto support rods. The V-shaped wire creates continuous slot openings for efficient water flow and reduced clogging.
Technical Specifications
Product Overview

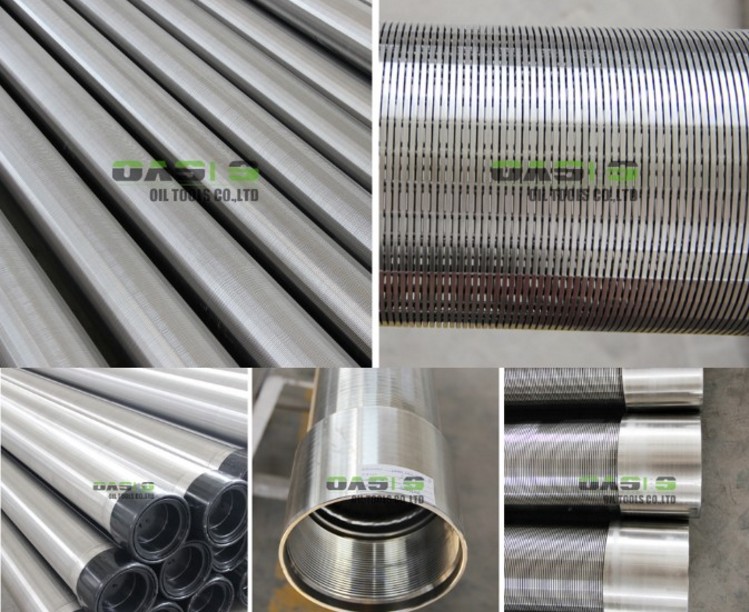

High-Efficiency SS304L Johnson Screens
These water well screens are manufactured using unique computerized machinery where a continuous triangular profile wire is fusion-welded onto support rods. This 'V' shaped wire design creates a continuous slot opening that significantly increases the available open area for superior access to the aquifer. Engineered for durability, these stainless steel screens prevent clogging and ensure uninterrupted flow for long-term well efficiency.
Technical Design
Wire Profile
V-ShapedTriangular Section
- Construction Method
- Fusion welded profile wire onto support rods
Material Specifications
- Material Grade
- Stainless Steel 304L
Key Advantages
Performance Benefits
- Increased open area for better aquifer access
- Non-clogging 'V' shaped profile
- Uniform and efficient well development
- Reduced head loss
- Superior corrosion resistance
Applications
- Primary Applications
- Water Well ConstructionIrrigation EngineeringWater ProcessingWater Extraction
Packaging & Logistics
Packaging Options
- Bubble and woven bags for container loading
- Wooden cases with fumigation certification
- Case Marking Information
- Batch NumberDate of ManufactureMaterial Grade
