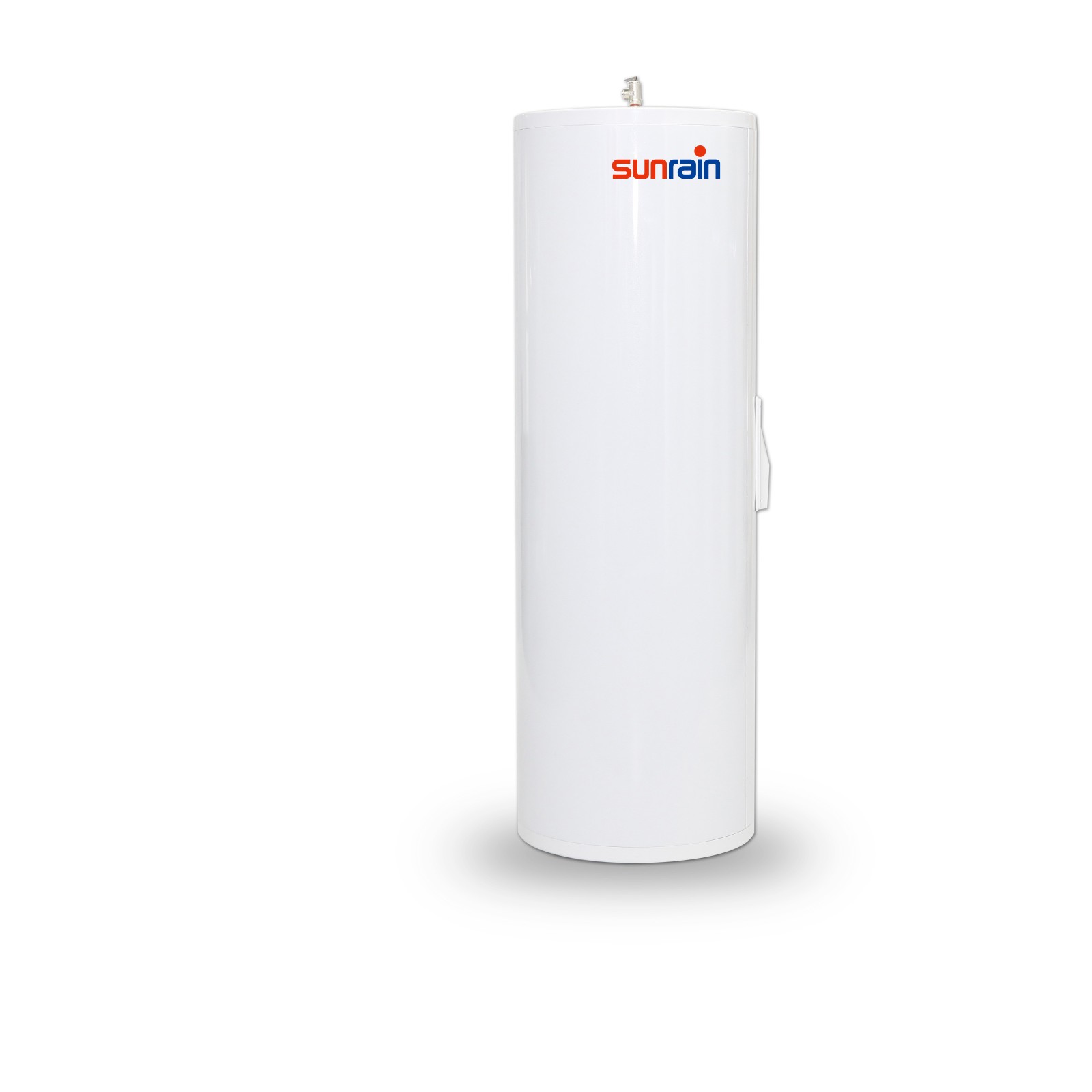

Split Pressurized Water Tank for Solar Heating
This split pressurized water tank is designed for solar water heating systems. Its split design allows flexible installation with solar thermal collectors, while the pressurized construction ensures consistent water pressure.
Technical Specifications
Product Overview
High-Performance Solar Thermal Storage
This split pressurized water tank is engineered for high-efficiency solar water heating systems, providing a reliable hot water solution for residential and commercial needs. Featuring an internal SUS316L stainless steel tank and advanced polyurethane insulation, it ensures minimal heat loss and long-lasting durability. The split configuration allows for flexible installation, while the high-pressure tolerance supports consistent flow performance.

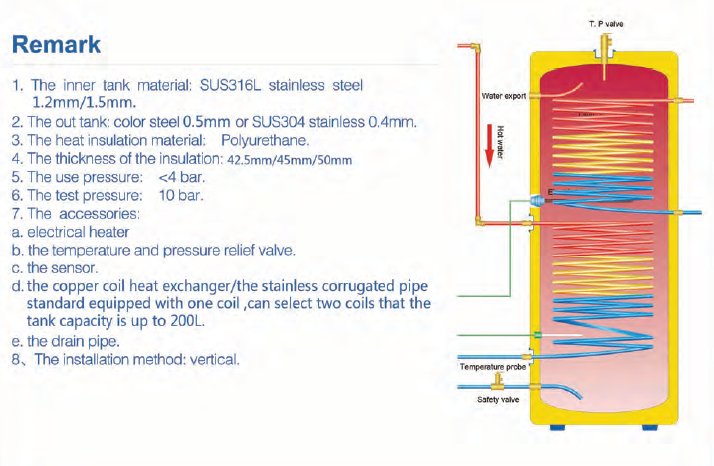

Material & Construction
- Inner Tank Material
- SUS316L Stainless Steel
- Insulation Material
- Polyurethane
- Insulation Thickness Options
- 42.5mm45mm50mm
Pressure Ratings
Operating Pressure
4 bar
Max Operating Pressure
Test Pressure
10 bar
System Test Pressure
Technical Specifications

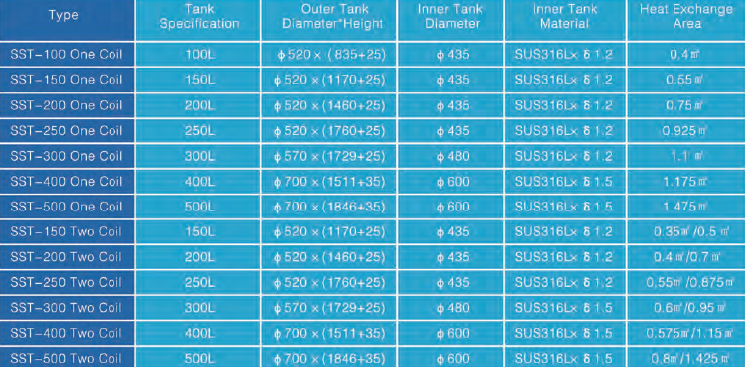

Configuration Table
| Capacity | Coils | Inner Material |
|---|---|---|
| 100L-500L | 1 or 2 | SUS316L |
- Installation Method
- Vertical
Features & Accessories
Standard Accessories
- Electrical heater
- Temperature and pressure relief valve
- Sensor
- Copper coil heat exchanger or stainless corrugated pipe
- Drain pipe
