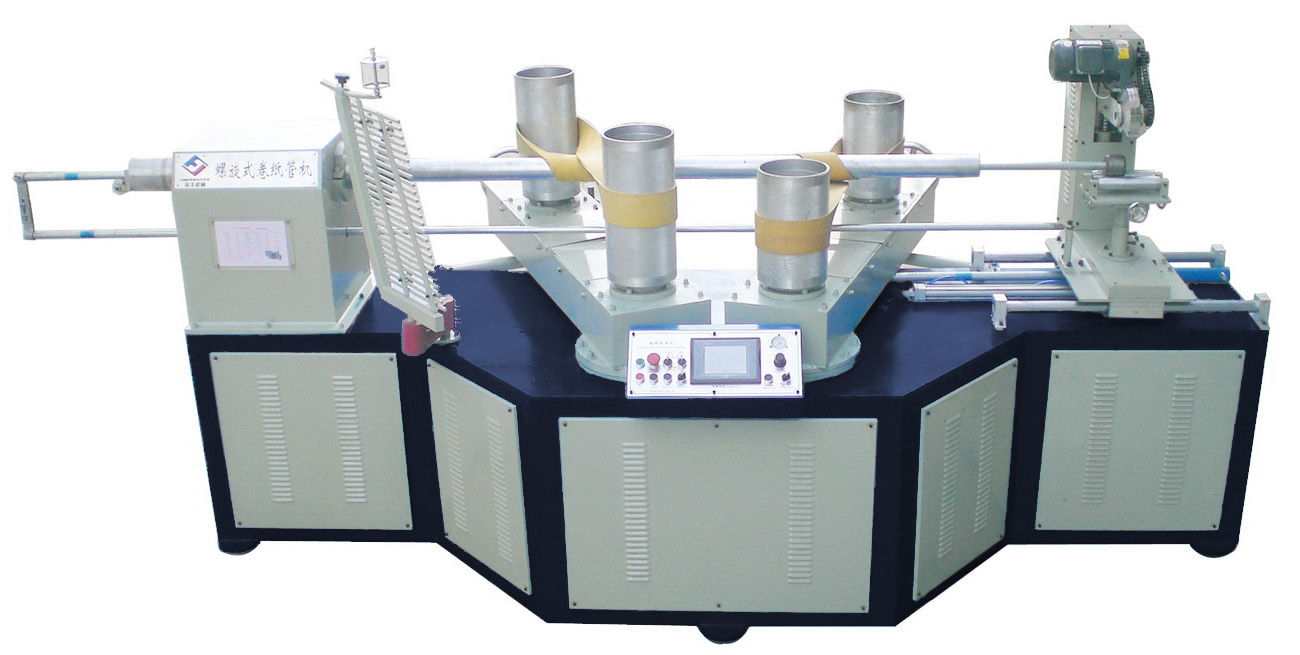

Spiral Paper Tube Forming Machine
This machine is used for paper converting and package industry and paper canister production. It is suitable for producing roll paper cores, BOPP film inner cores, and industrial tubes.
Technical Specifications
Overview
High-Performance Spiral Paper Tube Forming
This spiral paper tube forming machine offers high practicability and stable performance for industrial manufacturing needs. It features advanced computer PLC control with a touch-screen interface for precise operation, ensuring smooth surface finishes via round knife cutting. Equipped with an automatic gluing system and durable stainless steel components, it is designed for consistent, high-output production of paper tubes.
Technical Specifications
- Tube Diameter Range
- 20 mm
- Wall Thickness
- 15 mm
- Winding Speed
- 20 m/min
- Roller Layers
- 3-24 layers
- Labor Required
- 2-3 persons
- Cutting Method
- Round knife
Key Metrics
Performance Metrics
15 KW
Main Motor Power
1.5 KW
Glue Pump Power
3,000 KG
Machine Weight
Machine Configuration
Included Equipment
- Integral paper shelf
- Auto dropdown tube shelf
- Glue shelf
- 4 Belts
- 2 Core moulds
- 2 Knives
- 1 Tool kit
- Optional Features
- Waxing device
Dimensions
Space Requirements
| Item | Dimensions (mm) |
|---|---|
| Mainframe Size | 3800 x 2000 x 1800 |
| Required Area Space | 13000 x 9000 |
Control Systems
System Components
| System | Component |
|---|---|
| PLC Controller | Delta DVP14SS2 |
| Touch Screen | MCGS TPC7062 |
| Transducer | YASKAWA 15 KW |
| Pneumatic Parts | AIRTAC |
| Electric Parts | CHINT |
