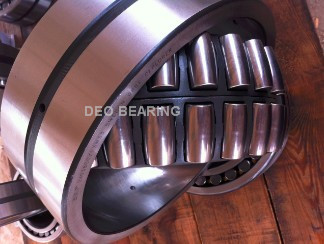

Spherical Roller Bearing 22314CC/W33
These spherical roller bearings are designed for heavy loading capacity. They compensate for shaft deformation and non-centered error with symmetrical double row spherical rollers self-aligning in the groove of the outer ring.
Technical Specifications
Product Overview
High-Performance Spherical Roller Bearing
The 22314CC/W33 is a robust spherical roller bearing engineered for demanding industrial environments. Featuring a double-row design, it excels at managing heavy radial and axial loads while accommodating shaft misalignment through its self-aligning capability. The inclusion of a lubrication groove and holes in the outer ring simplifies maintenance, ensuring extended service life in critical machinery such as gearboxes, pumps, and mining equipment.
Dimensions
- Bore Diameter (d)
- 70 mm
- Outer Diameter (D)
- 150 mm
- Width (B)
- 51 mm
Performance Metrics
Load Capacity
312 kN
Dynamic Load Rating (Cr)
395 kN
Static Load Rating (Cor)
Limiting Speeds
| Lubrication Type | Speed Limit |
|---|---|
| Grease | 2800 r/min |
| Oil | 3400 r/min |
Technical Specifications
Model Compatibility
- New Model: 22314CC/W33
- Old Model: 53614
- Key Features
- Spherical RollerSelf-AligningLubrication GrooveDouble-RowStamped Steel Cage
- Weight
- 4.34 KG
