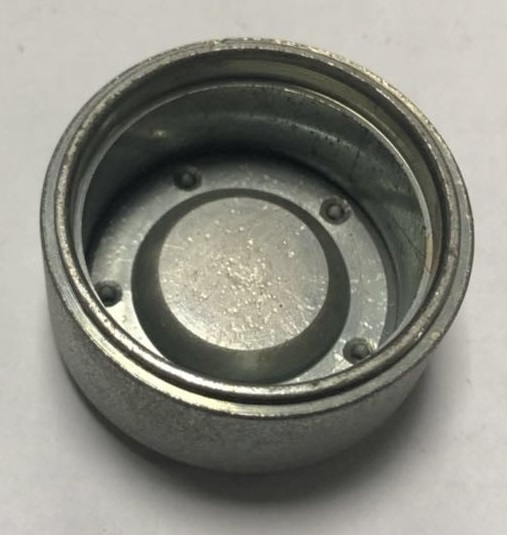

SPCC Metal U-Yoke for Audio Components
This U-yoke is made from SPCC and suitable for audio components. It features an outer diameter range of 18mm to 60mm and a thickness range of 1.5mm to 6.0mm.
Technical Specifications
Product Overview
Precision Engineered U-Yoke
This SPCC metal U-yoke is a critical precision component designed for high-performance audio drivers and magnetic circuits. Constructed from cold-rolled steel, it provides the structural integrity and magnetic permeability required for loudspeaker assembly. The component features a specialized surface treatment for durability, ensuring long-term reliability in sensitive electronic audio systems.
Technical Specifications
Outer Diameter Range
18 mm
Minimum OD
60 mm
Maximum OD
Thickness Range
1.5 mm
Minimum Thickness
6 mm
Maximum Thickness
Material and Finish
- Base Material
- SPCC (Cold Rolled Steel)
- Surface Treatment
- Sand blasting & Plating (Cr3+)
Compliance
- Compliance Certifications
- RoHS 2.0
