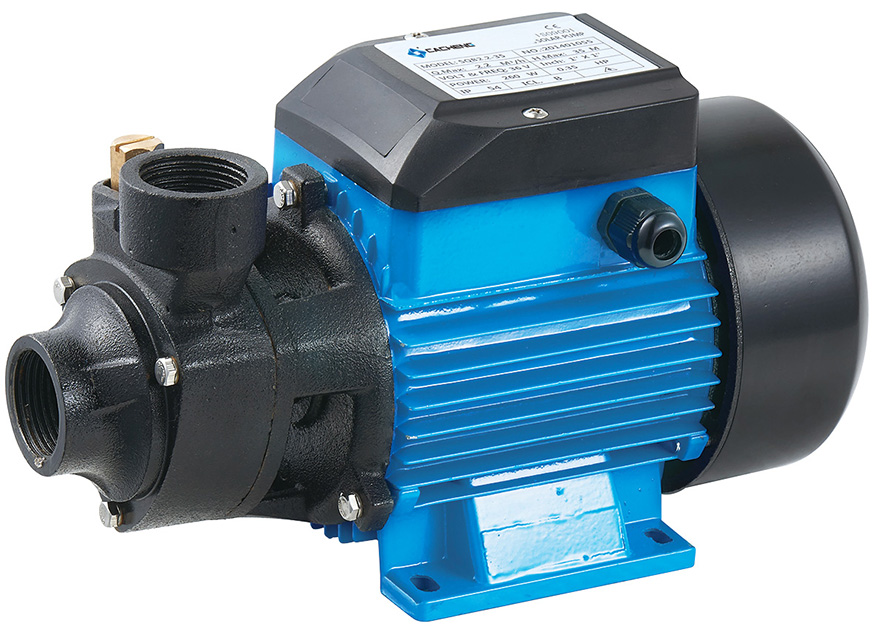

Solar Powered Vortex Water Pump
This vortex pump is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive to the pump's materials. It is suitable for domestic use, particularly for distributing water in combination with small pressure sets and for irrigating gardens.
Technical Specifications
Product Overview
High-Efficiency Solar Vortex Pump
This Solar Powered Vortex Water Pump is a high-performance solution engineered for reliable water management in off-grid environments. Featuring a robust permanent magnet brushless DC motor and an integrated 32-bit MCU controller, it ensures optimized power usage via MPPT technology. Built for durability with a die-cast aluminum housing and cast iron pump head, this system is ideal for irrigation, water supply, and pressure boosting.
Technical Specifications
- Rated Voltage
- 36 V
- Power Consumption
- 260 W
- Maximum Flow Rate
- 2.2 m³/h
- Outlet Connection
- 1 inch
System Controls
Operational Safety
- Do not run dry
- Requires voltage protection
- Ensure stable input voltage
- Controller Technology
- 32-bit MCUFOCSine Wave CurrentMPPT
Construction
Material Composition
| Component | Material |
|---|---|
| Pump Head | Cast Iron |
| Motor Housing | Die-cast Aluminum |
