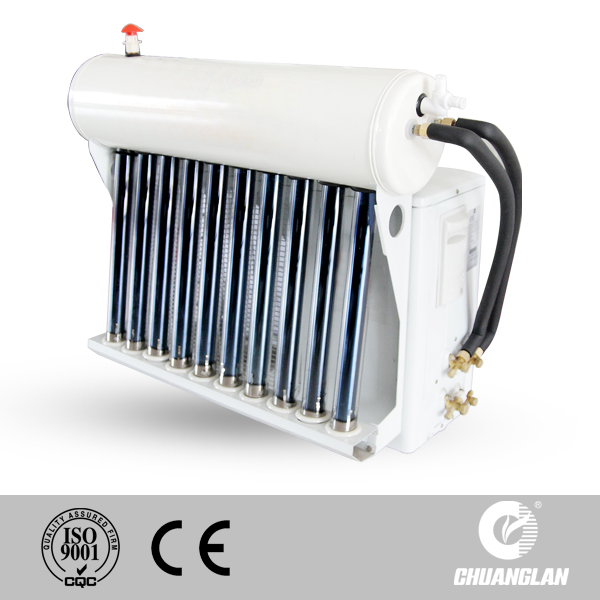

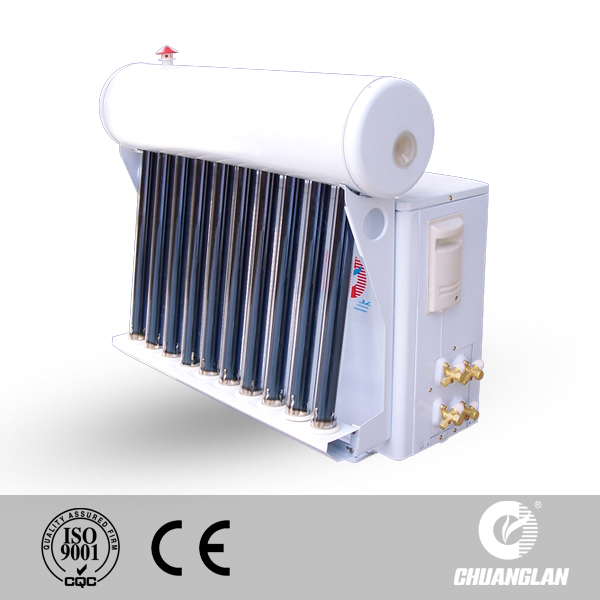

Solar-Assisted Hybrid Air Conditioner
This hybrid air conditioner uses both electricity and solar energy as a supplemental power source. It combines an absorption working system with a compression system to achieve energy savings and environmental protection.
Technical Specifications
Overview
Solar-Assisted Hybrid Technology
This hybrid solar air conditioner utilizes solar energy as an auxiliary power source to complement traditional electrical operation. By integrating solar thermal collectors with a standard compression system, the unit achieves significant energy savings of 30% to 50% compared to conventional models. Designed for robust performance, it operates smoothly in temperatures ranging from -5°C to 53°C, making it suitable for demanding T3 climate conditions.
Key Features
Energy Efficiency
30-50% Energy Saving
- Certifications
- ISOCE
Performance
Performance Data
| Metric | Range (Low-High Capacity Models) |
|---|---|
| Cooling Capacity (W) | 2600 - 7200 |
| Heating Capacity (W) | 2900 - 7900 |
| Noise Level (Indoor) | 40 - 50 dB(A) |
| Air Circulation (m³/h) | 450 - 1050 |
- Operating Temperature
- -5°C to 53°C
- Power Supply
- 220-240VAC, 1PH, 50Hz
Technical Specifications
Vacuum Tube Configuration
- Diameter: 47mm
- Length: 500mm - 620mm
- Quantity: 9 - 11 pieces

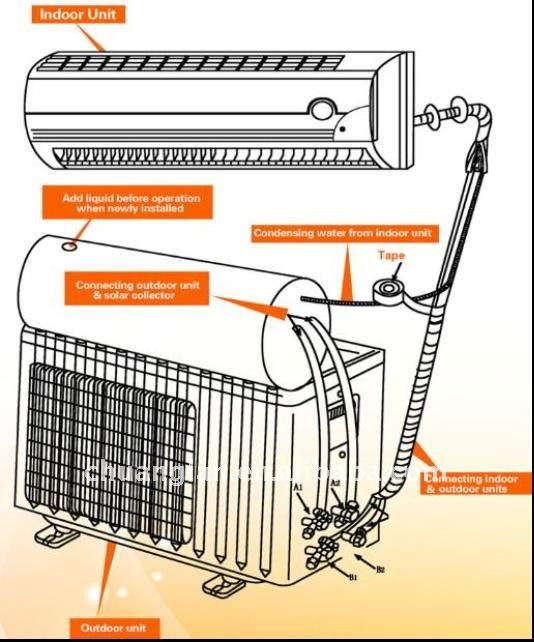

- Installation Requirements
- Easy installation process, similar to standard air conditioning units; requires liquid refrigerant addition upon initial setup.
