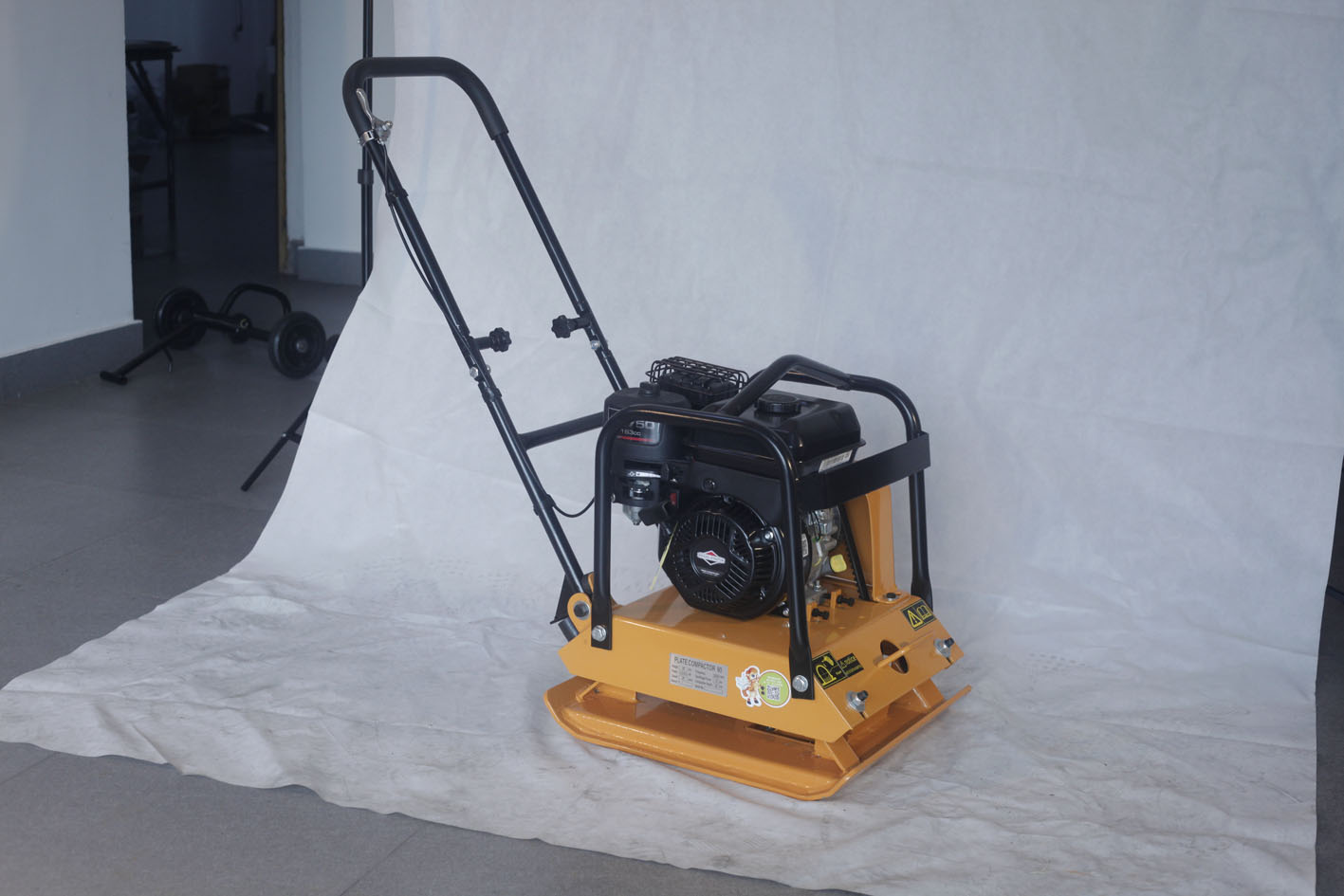

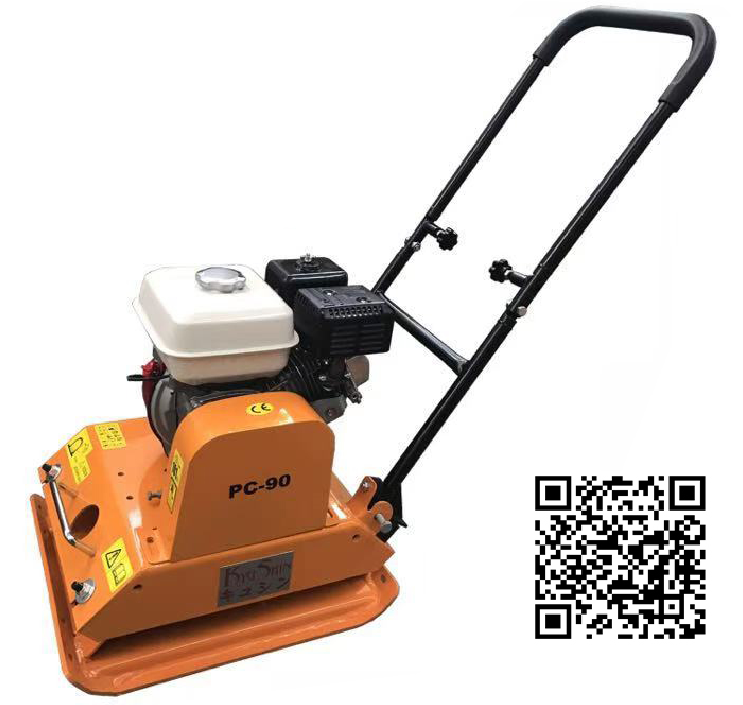

Soil Compaction Plate
This plate compactor is designed for compacting soil, gravel, and asphalt surfaces. The durable steel base plate ensures even compaction, while the ergonomic handle enhances operator comfort and control.
Technical Specifications
Product Overview
Professional Soil Compaction
This robust plate compactor is engineered for high-performance soil, gravel, and asphalt compaction. Powered by a reliable 3.6KW engine, it delivers a consistent 15kN impact force to ensure stable foundations for pathways, trenches, and general construction site preparation. The design includes an open plate to minimize debris buildup and heavy-duty shock mounts to enhance operator comfort during extended use.
Technical Specifications
- Engine Model
- GX160
- Rated Power
- 3.6 KW
- Impact Force
- 15 kN
- Compaction Depth
- 30 cm
- Vibration Frequency
- 5600 V.P.M
Physical Dimensions
- Net Weight
- 58 kg
- Base Plate Dimensions
- 34 x 28.5 cm
- Package Dimensions
- 595 x 475 x 400 mm
Certifications & Features
Key Features
- Portable and foldable handle
- Open plate design reduces dirt building
- Centrally mounted exciter for even force distribution
- Heavy-duty shock mounts for vibration reduction
- Front turn-up base for corner access
- Certifications
- CE
