Technical Specifications
Product Overview

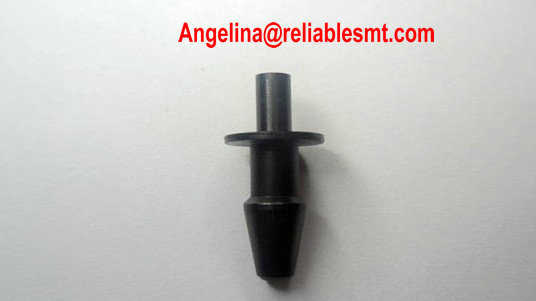

High-Precision SMT Placement Nozzle
This SMT pick-and-place nozzle is engineered for reliable component handling in automated assembly lines. Designed for compatibility with high-speed placement equipment, it ensures consistent accuracy and durability during the pick-and-place process. Available in both original and copy types, this component is an essential part for maintaining throughput and placement quality on printed circuit boards.
Technical Specifications
- Nozzle Series
- TN220
- Material of nozzle tip
- Tungsten steel
- Available Types
- OriginalCopy
Compatibility
Compatible Machine Series
- CP30
- CP33
- CP40
- CP45 FV
- CP60
Compatibility Reference
| Machine Model | Compatible Nozzles |
|---|---|
| CP30 | M1, M2, M3 |
| CP33 | XG05, XH08, XI14, AA24, BA40 |
| CP40 | N045, N08, N14, N24, N40, N75 |
| CP45 FV | TN030, TN110, TN040, TN065, TN140, TN220, TN400, TN750, TN1100 |
