SMT Pick and Place Nozzle
This pick and place nozzle is used in automated assembly lines to pick up and place electronic components onto printed circuit boards (PCBs). The nozzles are designed to accommodate different component dimensions and shapes.
Technical Specifications
Product Overview
High-Precision SMT Placement Components
These professional-grade pick and place nozzle assemblies are essential components for automated SMT electronic assembly lines. Designed for high-speed and high-accuracy component placement, this selection covers a wide range of types suitable for various electronic component sizes. Built for durability and reliability, these parts ensure consistent performance in high-volume production environments.
Compatibility & Specifications
Part Reference Table
| Component Category | Part Reference |
|---|---|
| Standard Nozzle Series | KV8-M7710-A1X / KV8-M7720-A0X |
| Advanced Series | KGT-M7710-A0X / KGT-M7790-A0X |
| Series 300 Nozzles | KHN-M7710-A2 / KHY-M7740-A0 |
| Shaft Assemblies | KM9-M7107-00X / KGB-M711S-A0X |

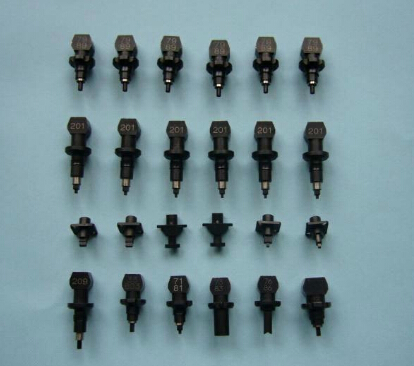

- Available Nozzle Types
- 71A72A73A74A76A313233343571F72F73F201A202A203A206A209A301A302A303A314A
Quality Assurance
Manufacturing Origin
Made in Japan
