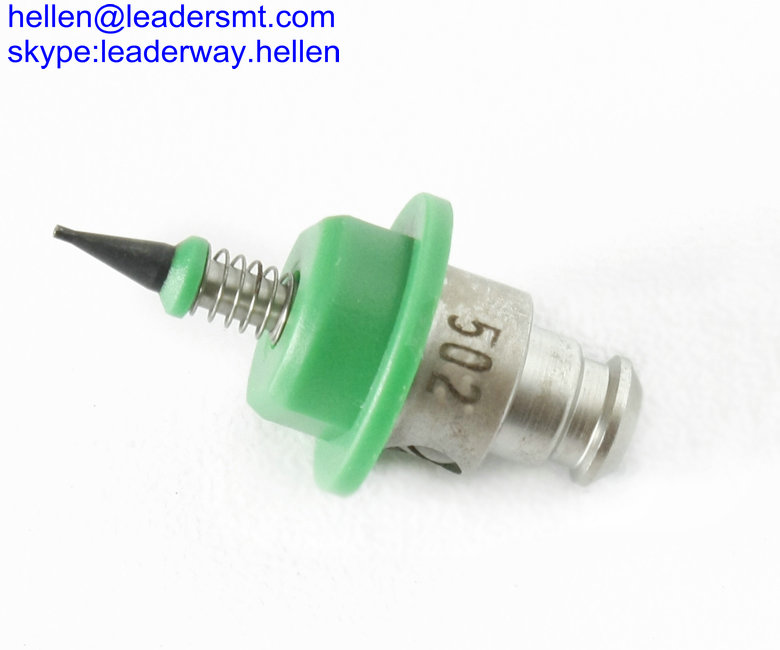

SMT Pick and Place Nozzle 502
This SMT pick and place nozzle 502 is designed for use in KE series placement machines. It ensures precise pick-and-place functionality for reliable component placement in SMT assembly processes.
Technical Specifications
Product Overview
High-Precision SMT Nozzle 502
This high-precision pick and place nozzle is engineered for reliable component handling during automated electronics assembly. Designed for optimal performance in SMT equipment, it ensures accurate placement and minimizes the risk of component damage. Its robust construction makes it an essential replacement part for maintaining consistent production efficiency and quality.
Compatibility
Compatible Machine Series
- KE2000 Series
- KE2010 Series
- KE2020 Series
- KE2030 Series
- KE2040 Series
- KE2050 Series
- KE2060 Series
- KE2070 Series
- KE2080 Series
- FX-1r Series
Part Identification
Part Number Reference
| Nozzle Model | Part Reference (KE2010-40) | Part Reference (KE2050-60) |
|---|---|---|
| 500 | E3608-729-0A0 | 40011046 |
| 501 | E3600-729-0A0 | 40001339 |
| 502 | E3601-729-0A0 | 40001340 |
| 503 | E3602-729-0A0 | 40001341 |
| 504 | E3603-729-0A0 | 40001342 |
| 505 | E3604-729-0A0 | 40001343 |
| 506 | E3605-729-0A0 | 40001344 |
| 507 | E3606-729-0A0 | 40001345 |
| 508 | E3607-729-0A0 | 40001346 |
