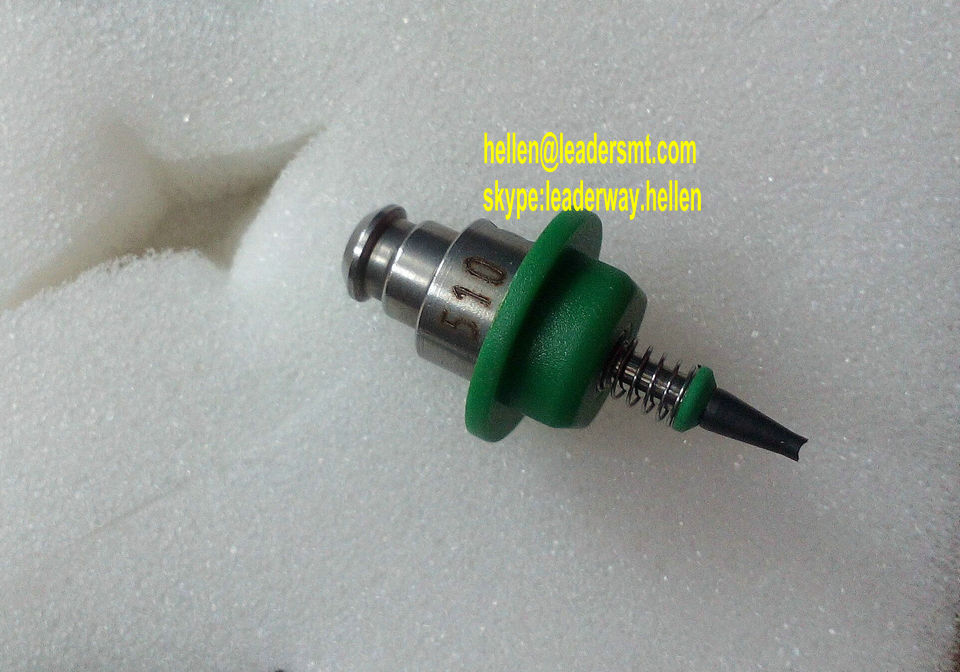

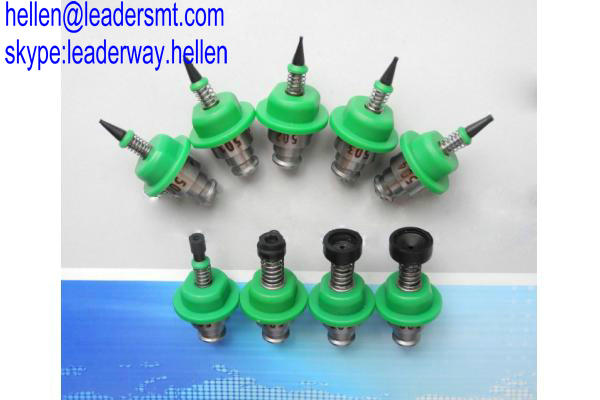

High-Precision SMT Nozzles
These pick-and-place nozzles are engineered for automated surface mount technology (SMT) assembly lines, ensuring accurate and reliable component placement. Designed for high-speed production environments, they feature durable construction and precise tip geometry to minimize component damage. Available in a wide range of sizes, these nozzles accommodate various SMD components including resistors, capacitors, and integrated circuits.
Compatibility
- Compatible Series
- 500 Series510 Series511 Series512 Series517 Series518 Series520 Series800 Series
Technical Specifications
Available Nozzle Models
| Part Number | Specification / Size |
|---|---|
| 40011046 | 500 ASSY 1.0 X 0.5 |
| 40001339 | 501 ASSY 0.7X0.4 / Ø0.2 |
| 40001340 | 502 ASSY Ø0.7 / Ø0.4 |
| 40001341 | 503 ASSY Ø1.0 / Ø0.6 |
| 40001342 | 504 ASSY Ø1.5 / Ø1.0 |
| 40001343 | 505 ASSY Ø3.5 / Ø1.7 |
| 40001344 | 506 ASSY Ø5.0 / Ø3.2 |
| 40001345 | 507 ASSY Ø 8.5 / Ø 5.0 |
| 40001346 | 508 ASSY Ø 9.5 / Ø 8.0 |
| 40025165 | 509 ASSY Ø0.1/Ø0.4 |
| E36157290A0 | 510 ASSY Ø1.5/Ø0.6 |
| VE36167290A0 | 511 ASSY Ø2.0/Ø1.2 |
Additional Supported Models
- 512
- 513
- 514
- 515
- 516
- 517
- 518
- 519
- 520
- 521
- 522
- 523
- 524
- 525
- 526
- 527
- 528
- 529
- 530
- 531
- 532
- 533
- 534
- 535
- 800
- 801
- 802
- 803
- 804
- 805
