Technical Specifications
Product Overview

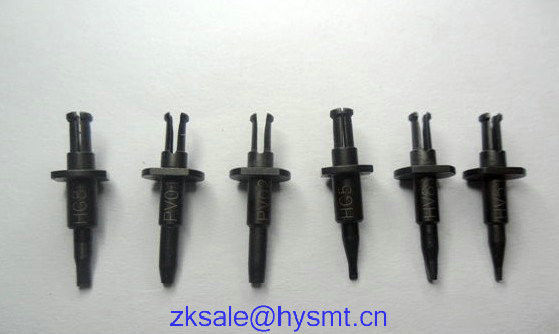

Precision SMT Placement Component
This high-precision SMT nozzle is designed specifically for integration with advanced pick and place machines, ensuring reliable automated electronic assembly. Crafted with wear-resistant materials, these components provide superior vacuum sealing and secure component handling for high-speed production environments. With a variety of configurations available for resistors, capacitors, and ICs, this nozzle range helps maximize throughput while minimizing component drop rates.
Compatibility
- Supported Machine Series
- GXH-1GXH-1SGXH-3Sigma G4G5
Technical Specifications
Available Nozzle Configurations
| Part Code | Component Compatibility | Material |
|---|---|---|
| PV01 | 1005 | Ceramic |
| PV02 | 1608 | Ceramic |
| HV03 | 2012 | Ceramic |
| HA04 | 3216 | Ceramic |
| HA09 | SOP, QFP, PLCC | N/A |
| HA10 | 603 | Ceramic |
| HV31 | 603 | Diamond |
| HV51 | 1005-2012 | Diamond |
| HV81 | 1068-2012 | Diamond |
| HB03 | Melf | N/A |
| HB04 | Melf | N/A |
