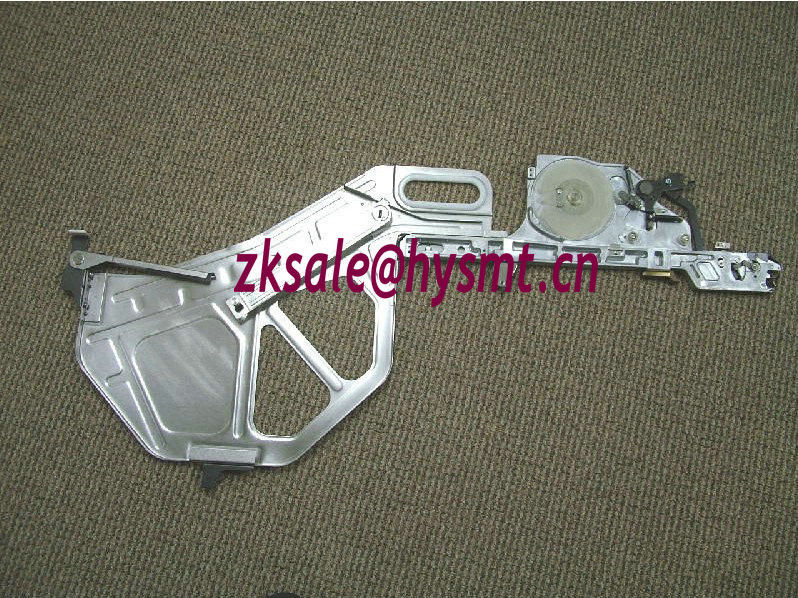

SMT Component Feeder for Electronic Assembly
This SMT component feeder is designed for automated electronic component placement. It ensures precise and reliable feeding of components to pick-and-place machines, enhancing production efficiency and minimizing downtime.
Technical Specifications
Product Overview
Precision SMT Component Feeding
This high-performance component feeder is engineered for automated electronic assembly lines, specifically designed to support high-speed pick-and-place operations. It ensures reliable, continuous component supply through advanced tape reel mechanisms, significantly enhancing production efficiency. With a wide range of configurations available, from standard 8mm tape units to specialized deep-groove feeders, this equipment is essential for maintaining precision in high-volume manufacturing environments.
Compatibility
- Compatible Systems
- CM402CM602NPM
Feeder Configurations
Available Feeder Widths
- 8mm
- 12/16mm
- 24/32mm
- 44/56mm
- 72mm
- 88mm
Feeder Configuration Matrix
| Width | Sensor Status | Part Number |
|---|---|---|
| 8mm | 0201 Special | N610031080AA |
| 8mm | With Sensor | KXFW1KS5A00 |
| 8mm | No Sensor | KXFW1KSBA00 |
| 12/16mm | With Sensor | KXFW1KS6A00 |
| 12/16mm | No Sensor | KXFW1KSCA00 |
| 24/32mm | Deep Grooves | KXFW1LOYA00 |
| 44/56mm | Deep Grooves | KXFW1LOTA00 |
| 72mm | Deep Grooves | KXFW1LOZA00 |
Accessories
Maintenance & Support Accessories
Feeder MotorControl BoardPower CordTrolleyCalibrator
Specialized Units
- Vibrating Feeder
- KXFW1KSRA00
