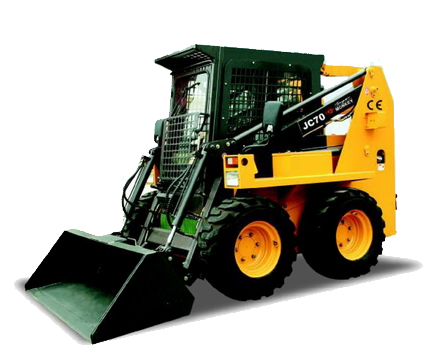

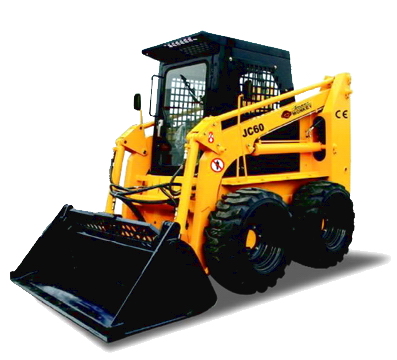

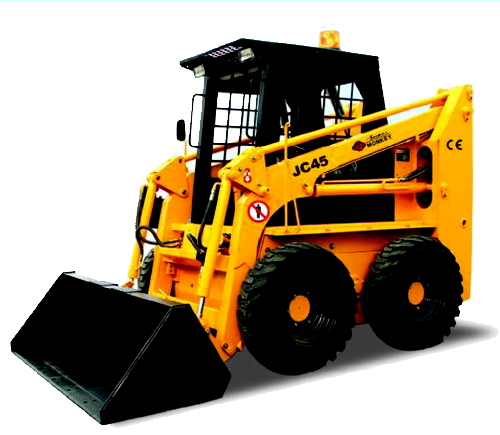

Skid Steer Loader with Hydraulic Brakes
This skid steer loader features a compact structure and maneuverable movement, making it suitable for narrow space operation. It has hydraulic brakes and an open cabin with a mechanical control system.
Technical Specifications
Overview
Versatile Skid Steer Loader
This powerful skid steer loader is engineered for high-performance in construction, landscaping, and agricultural environments. Featuring a robust hydraulic system and a 50HP engine, it offers excellent maneuverability and productivity in confined work zones. With a flexible operating capacity ranging from 700kg to 1500kg, it provides reliable material handling solutions for diverse project needs.
Performance Metrics
Key Performance Indicators
50 HP
Engine Power
1,500 kg
Max Operating Capacity
12 km/h
Max Travel Speed
- Tipping Load
- 1400 kg
Hydraulics and Capacity
- Hydraulic Pump Flow
- 62.5 L/min
- Bucket Capacity
- 0.36-0.7 m3
Physical Dimensions
Machine Dimensions
| Parameter | Value |
|---|---|
| Total Height | 2050 mm |
| Length with Bucket | 3380 mm |
| Length without Bucket | 2450 mm |
| Width with Bucket | 1740 mm |
| Dumping Height | 2310 mm |
| Ground Clearance | 185 mm |
Certifications
Compliance and Standards
CE Certified
