Skid Steer Loader with 1430 lb Operating Capacity
This skid steer loader has a rated operating capacity of 1430 lb. Its compact design and hydraulic system make it suitable for various tasks.
Technical Specifications
Overview
Compact Multifunctional Loader
This multifunctional skid-steer loader is specifically designed for modern agricultural production where space is limited and flexibility is key. It features a high-performance, low-vibration 4-cylinder engine and an optimized hydraulic system that ensures excellent dynamic compatibility. With reduced dimensions for improved maneuverability and specialized auxiliary components, this machine provides professional-grade performance in tight operational environments.
Performance Metrics
Rated Operating Capacity
1,430 lb
Rated Capacity
650 kg
Rated Capacity
Tipping Load
3,631 lb
Tipping Load
1,300 kg
Tipping Load
Operating Weight
5,950 lb
Operating Weight
2,700 kg
Operating Weight
Engine and Hydraulics
Engine Specifications
- Model: Perkins 403C-15
- Power: 33 HP / 33.5 PS
- Configuration: 4-cylinder
- Cooling: Water-cooled
- Features: Low vibration

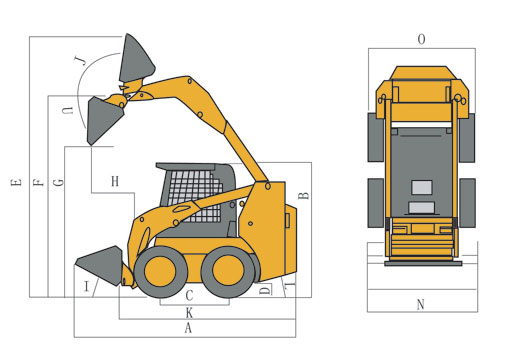

Design and Dimensions
Design Improvements
- Axis distance reduced to 939mm
- Maximum loader height reduced to 3428mm
- Optimized turning radius for flexible operation
