Overview
High-Efficiency Six-Spindle Winding

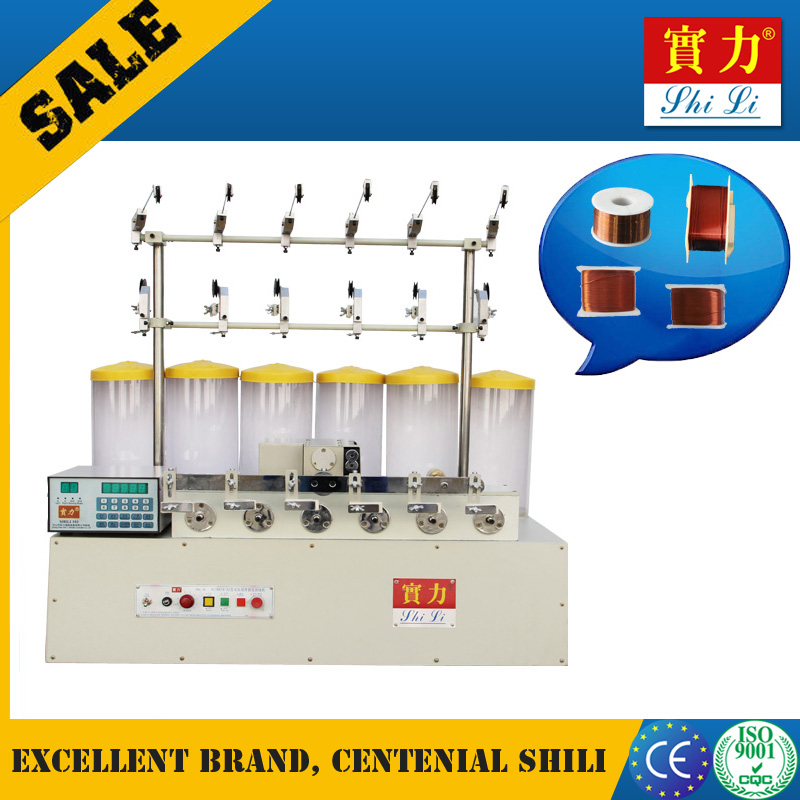

This six-spindle CNC coil winding machine is engineered for precision and durability, utilizing high-quality steel and bearings for an extended service life. It features advanced stepping motor control with variable speed settings, allowing for high-speed operation and customizable winding parameters. Designed for versatility, it is an ideal solution for manufacturing small transformers, relays, power coils, and communications coils.
Technical Specifications
- Number of Spindles
- 6
- Wire Size Range
- 0.04 - 0.45 mm
- Loop Diameter
- 65 mm
- Winder Width
- 65 mm
- Spindle Pitch
- 85 mm
Performance Metrics
Maximum Winding Speed
4,300 turn/min
High Speed
2,150 turn/min
Low Speed
Motor Specifications
| Component | Type/Rating |
|---|---|
| Spindle Motor | 370W |
| Winder Motor | Stepping Motor |
Physical Dimensions
Weight
60 kg
Net Weight
84 kg
Gross Weight
- Machine Size
- 930 x 510 x 480 mm
- Packing Size
- 460 x 1040 x 650 mm
Certifications
Standards & Compliance
CEISO 9001CQC
Operational Features
Core Functionalities
- Automatic reset function for easy start/stop point measurement
- Programmable layer start/stop control
- Two-side stop setting
- 16-control chip architecture
- Variable speed potentiometer control
