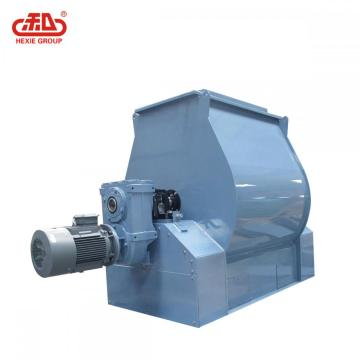

Single Shaft Paddle Mixer for Feed
The single shaft paddle mixer is designed for mixing various feed materials to achieve high conformity. It features a double rotor design with internal and external blades to enhance material convection, shear, and mixing.
Technical Specifications
Product Overview
Single Shaft Paddle Mixer for Feed Industry
This high-performance single shaft paddle mixer is engineered to achieve high-conformity mixing in animal feed production. Featuring a sophisticated double rotor design with internal and external blades, it maximizes material convection and shear. The unit is designed for operational efficiency with a full-open discharge door that ensures complete emptying with no residue and advanced sealing technology to prevent leakage.
Technical Specifications
Model Specifications
| Model | Power (kw) | Volume (m3) | Batch Weight (kg) |
|---|---|---|---|
| SHDJ-1.0 | 11 | 1 | 500 |
| SHDJ-2.0 | 18.5 | 2 | 1,000 |
| SHDJ-4.0 | 37 | 4 | 2,000 |
Key Features
Operational Highlights
- Double rotor design for enhanced convection and shear
- Full open discharge door for zero-residue emptying
- Advanced shaft end sealing with airbag technology
- Large overhaul door for easy cleaning and maintenance
- Quick blade replacement system
Compliance & Logistics
- Certifications
- ISO9001CE Certified

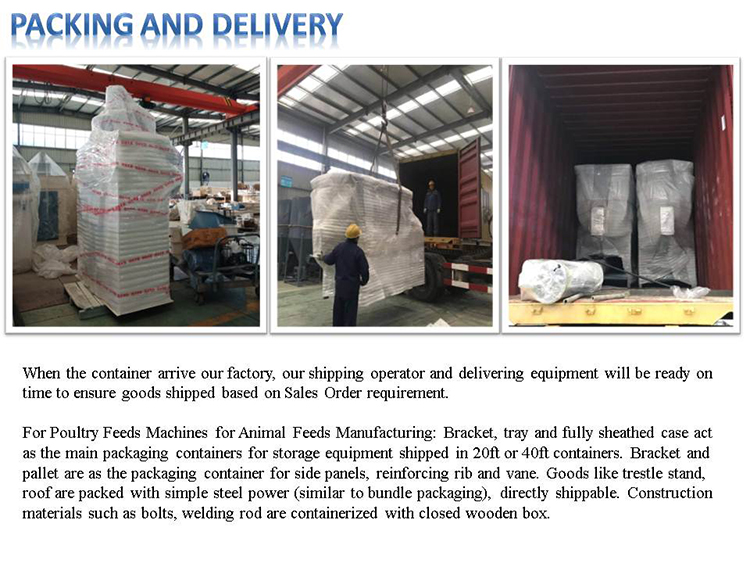

- Shipping Packaging
- Standard Export Wooden Case
