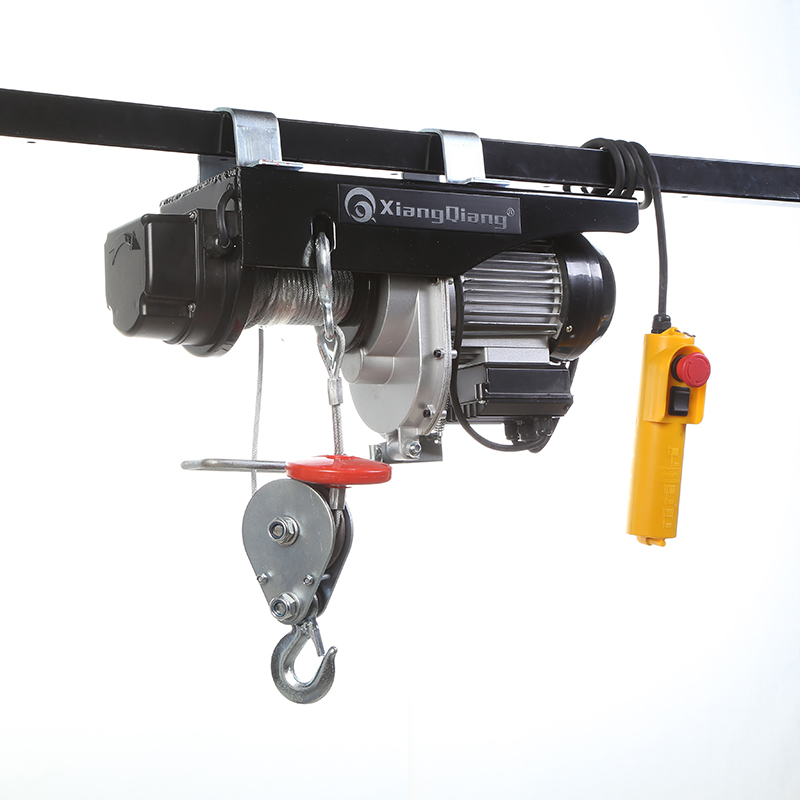

Single-Phase Electric Wire Rope Hoist with Double Limit Switches
This single-phase electric wire rope hoist features a simple structure for easy installation and produces low noise during operation. Equipped with double limit switches, it ensures safe operation by preventing over-lifting and over-lowering.
Technical Specifications
Product Overview
Industrial Lifting Performance
This 220V electric wire rope hoist is engineered for efficient load management in workshops, garages, and construction sites. Featuring a robust 1650W motor and dual-line lifting capabilities, it offers reliable power for tasks up to 1000kg. With integrated double limit switches and an automatic braking system, this unit prioritizes operator safety and precise load control during intensive operation cycles.
Performance Specifications
Lifting Capacity & Speed
500 kg
Single Line Capacity
1,000 kg
Double Line Capacity
9 m/min
Single Line Speed
4.5 m/min
Double Line Speed
Technical Details
Operating Parameters
| Parameter | Value |
|---|---|
| Motor Power | 1650 W |
| Voltage | 220 V |
| Cable Diameter | 5.6 mm |
| Single Line Height | 12 m |
| Double Line Height | 10 m |
Safety & Features
- Operational Safety
- Double Limit SwitchesAutomatic BrakeWired Remote ControlHeavy-duty Toggle Switch
Operational Limits
- Duty Cycle
- 20 %
