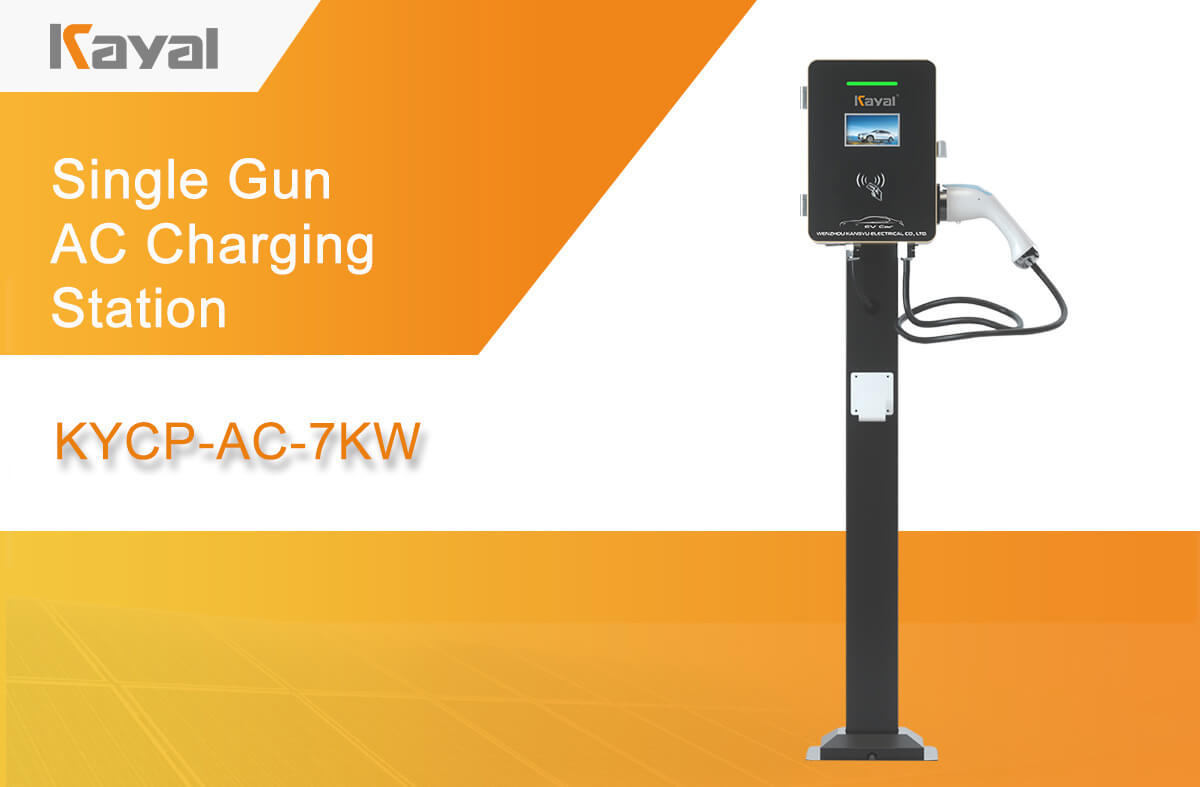

Single-Gun AC Electric Vehicle Charging Station
This AC charging station provides AC power to electric vehicles equipped with a vehicle charger. It is applicable in electric vehicle charging stations, public parking areas, residential areas, shopping centers, and transportation hubs.
Technical Specifications
Product Overview
Professional AC EV Charging Solution
This high-performance single-gun AC charging station is designed for reliable and efficient electric vehicle power supply. Featuring a robust weather-proof enclosure rated for outdoor durability, it is ideal for public parking, commercial plazas, and residential installations. It includes an intelligent control system with multiple charging modes, a high-resolution touch screen for user-friendly operation, and advanced safety monitoring to ensure secure energy transfer.
Technical Specifications
Input Power Requirements
220 V
Rated Voltage
50 Hz
Input Frequency
Output Capabilities
7 kW
Max Power
32 A
Max Output Current
Dimensions & Installation
| Type | Dimensions (mm) |
|---|---|
| Wall-mounted | 292 x 126 x 417 |

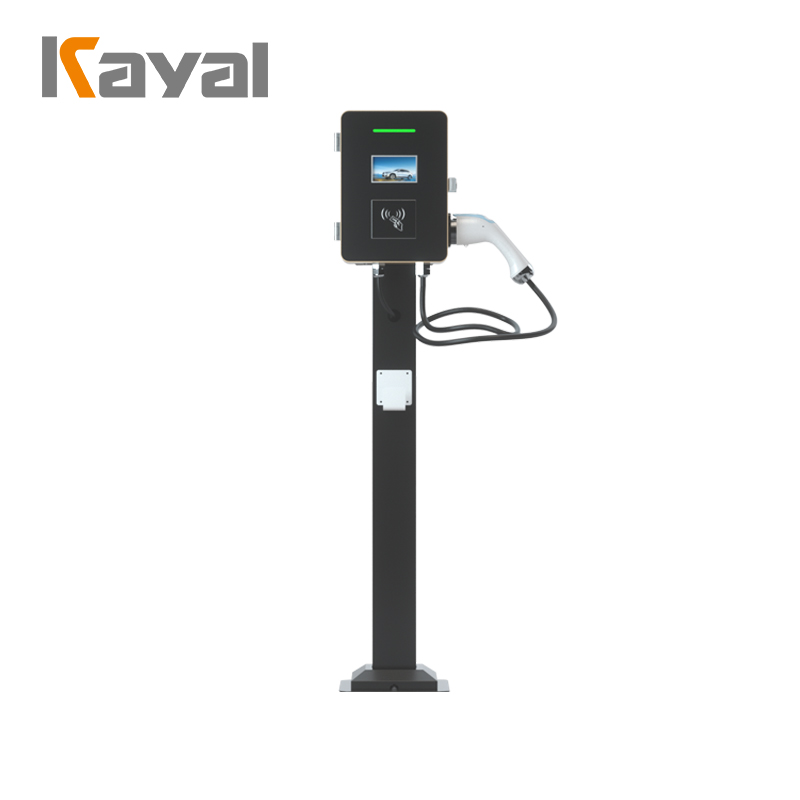

| Column type | 292 x 176 x 4131 |
Features & Intelligence
Intelligent Capabilities
- OCPP 1.6 Protocol Support
- Remote GPRS Networking
- Automatic Temperature Monitoring

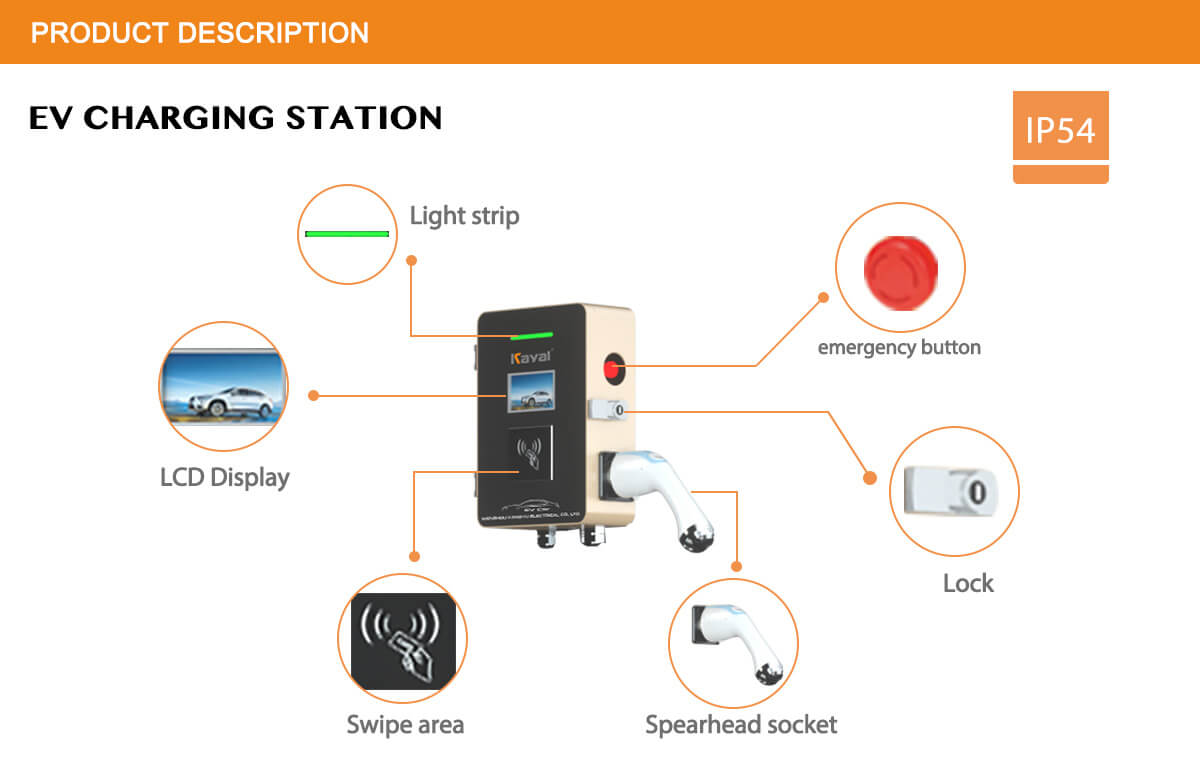

- 4.3-inch Color Touch Screen Display
- IC Card User Authentication
- Charging Modes
- Automatic FullFixed TimeFixed AmountFixed Power

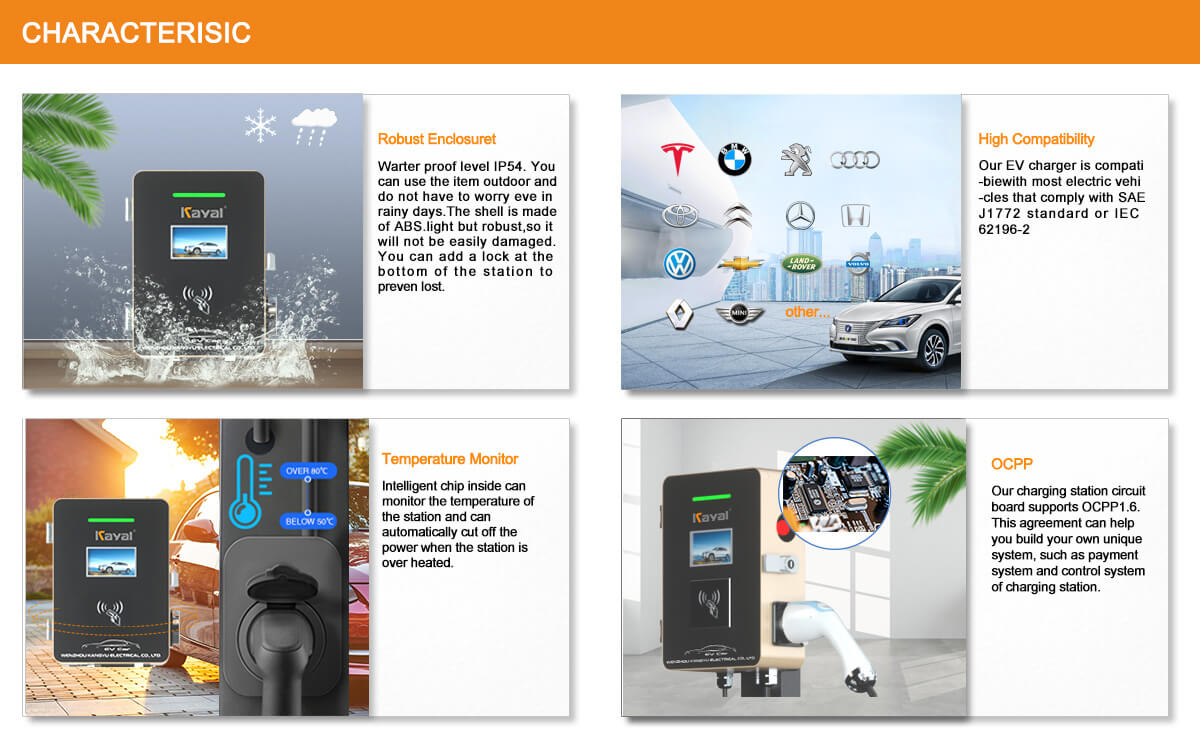

Environmental & Safety
Safety and Protection
IP54 Water-proofLeakage ProtectionEmergency Stop ButtonOvercurrent ProtectionOvervoltage Protection
Operating Conditions
- Temperature range: -25°C to 50°C
- Relative humidity: ≤ 90%
- Installation inclination: ≤ 5%
- Atmospheric pressure: 80kPa - 110kPa
