Technical Specifications
Product Overview
Industrial Power Solution

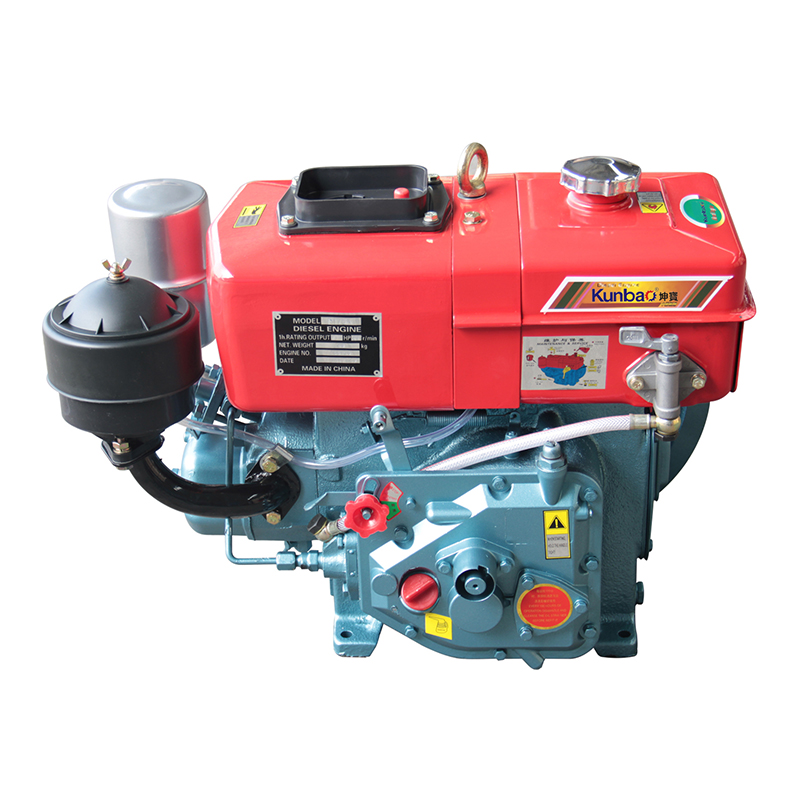

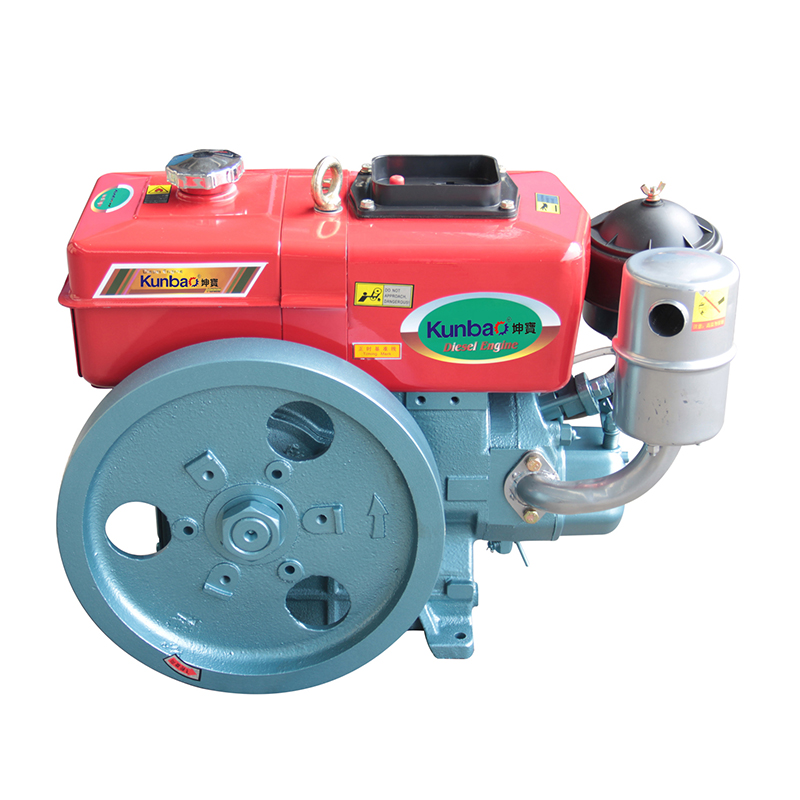

This horizontal, single-cylinder diesel engine features a robust four-stroke water-vaporization cooling system designed for consistent performance. It serves as an ideal power unit for small generating sets, agricultural machinery, farm boats, and three-wheeled vehicles. Its durable architecture ensures reliable operation in demanding environments, offering efficient combustion for varied industrial and mobile power applications.
Technical Specifications
- Model
- R175A
- Cooling Type
- Water-vaporization
- Combustion Mode
- Swirl-Type
Performance Metrics
Key Performance Indicators
4.84 kw
Max Power
4.4 kw
Nominal Power
2,600 rpm
Nominal Speed
Dimensions & Mechanical
Mechanical Dimensions
| Parameter | Value | Unit |
|---|---|---|
| Cylinder Diameter | 75 | mm |
| Piston Stroke | 80 | mm |
Regulation & Starting
Speed Regulation
- Instantaneous Speed Regulating Rate: ≤12%
- Stable Speed Regulating Rate: ≤8%
Starting Method
Hand Starting
Options
- Optional Model Variants
- R175AN (Radiator with light)R175AW/O (Without fuel/water tank)
