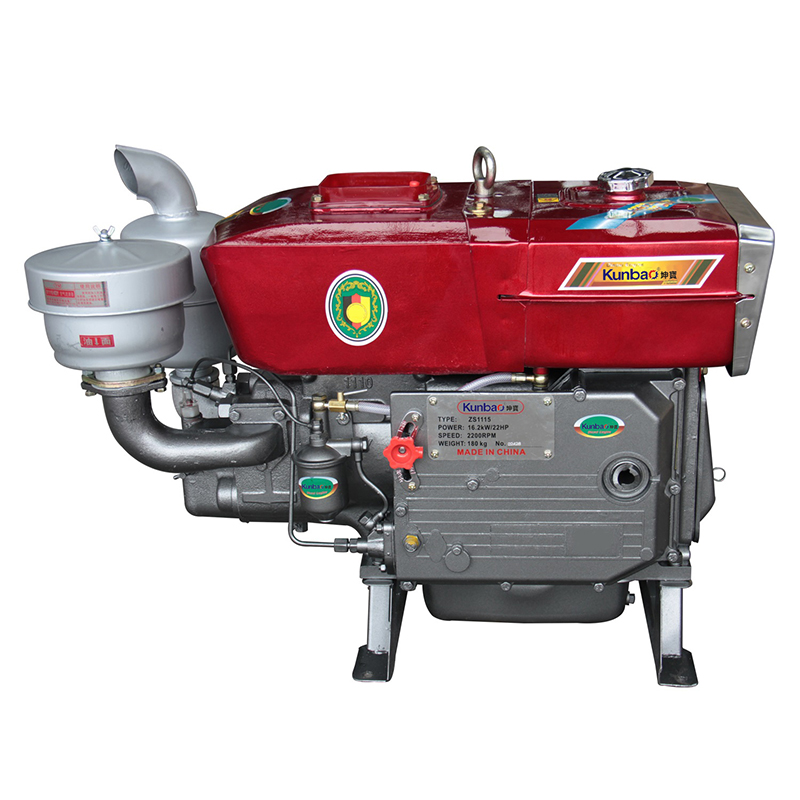

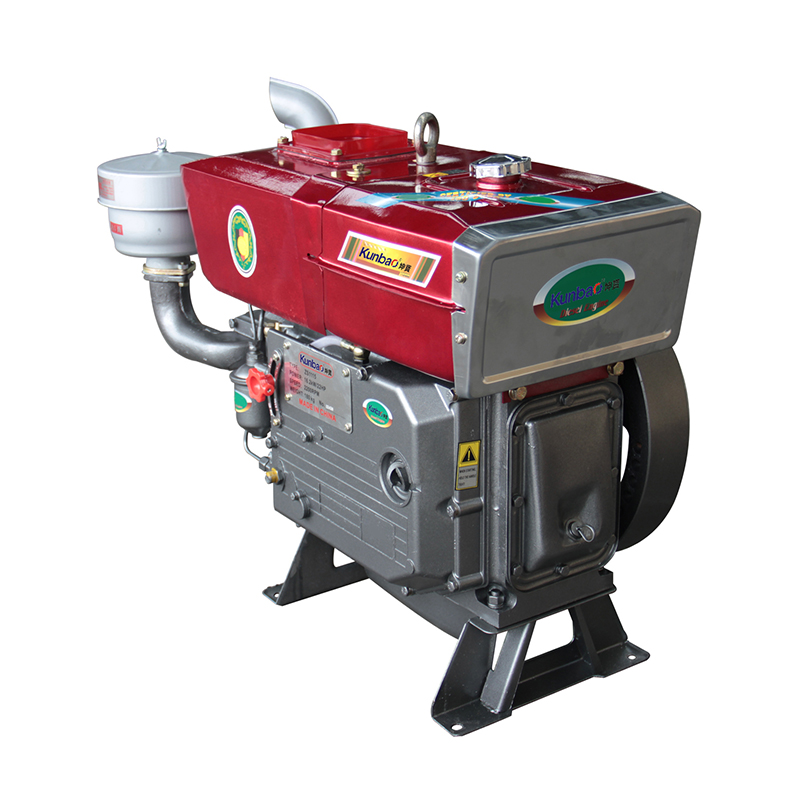

Single-Cylinder Water-Cooled Diesel Engine
This single-cylinder, water-cooled diesel engine is engineered for dependable power generation. It features a robust design and efficient cooling for consistent performance.
Technical Specifications
Overview
Robust Single-Cylinder Diesel Power
This horizontal, four-stroke diesel engine utilizes a direct injection combustion system to deliver reliable power with excellent fuel efficiency. Designed for simplicity and easy maintenance, the unit features a durable water-evaporative cooling system suitable for demanding industrial and agricultural environments. Its versatile design makes it an ideal power source for generators, water pumps, agricultural machinery, and small boats.
Performance
Engine Performance
16.2 kW
Max Power
22 HP
Max Power
2,200 rpm
Rated Speed
Technical Specifications
Dimensions
| Metric | Value | Unit |
|---|---|---|
| Cylinder Diameter | 115 | mm |
| Piston Stroke | 115 | mm |
Speed Regulation
- Instantaneous Speed Regulating Rate: ≤12%
- Stable Speed Regulating Rate: ≤8%
- Starting Method
- Hand Starting
Variations
- Available Model Variants
- ZS1115N (Radiator + Light)ZS1115M (Electric Start)ZS1115NM (Radiator + Light + Electric Start)ZS1115W/O (No Tank)
