Single Cylinder Horizontal Engine
This single-cylinder horizontal engine is engineered for excellent performance and superior fuel efficiency. Its robust design ensures reliable power for a variety of equipment, including generators and water pumps.

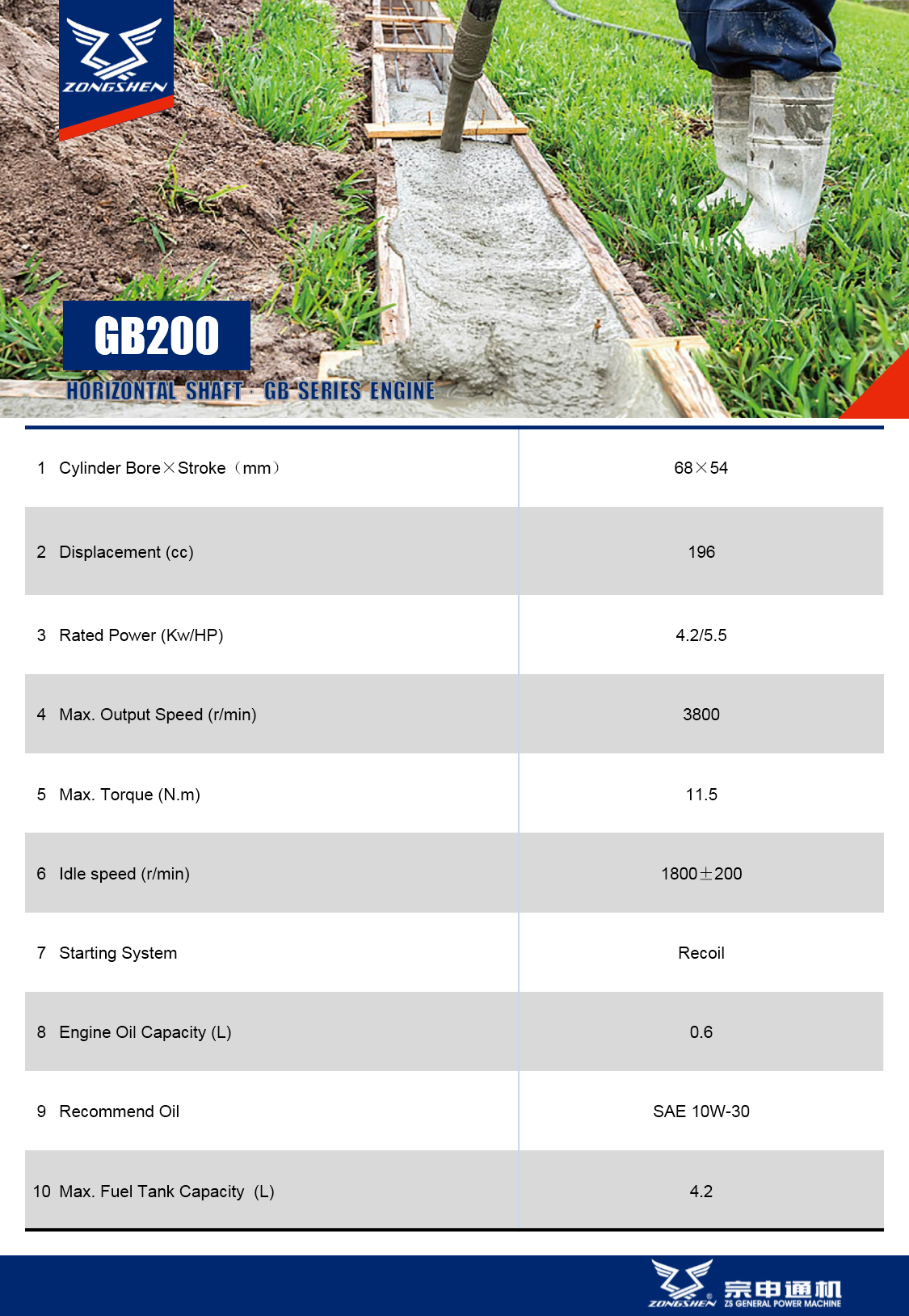

Technical Specifications
Product Overview
High-Performance Horizontal Engine
This single-cylinder horizontal shaft engine is engineered for efficiency and reliability in demanding environments. Designed to power a wide range of equipment including generators, water pumps, and agricultural machinery, it offers consistent performance and fuel economy. With a user-friendly recoil start system and robust construction, this engine ensures smooth operation and low maintenance requirements for professional applications.
Technical Specifications
Rated Power
4.2 Kw
Rated Power (Kw)
5.5 HP
Rated Power (HP)
- Displacement
- 196 cc
- Cylinder Bore × Stroke
- 68×54 mm
- Maximum Torque
- 11.5 N.m
Operational Parameters
Starting System
Recoil
- Max. Output Speed
- 3800 r/min
- Idle Speed
- 1800±200 r/min
Maintenance & Fluids
- Engine Oil Capacity
- 0.6 L
- Recommended Oil
- SAE 10W-30
- Max. Fuel Tank Capacity
- 4.2 L
