Technical Specifications
Product Overview
Robust Power Generation

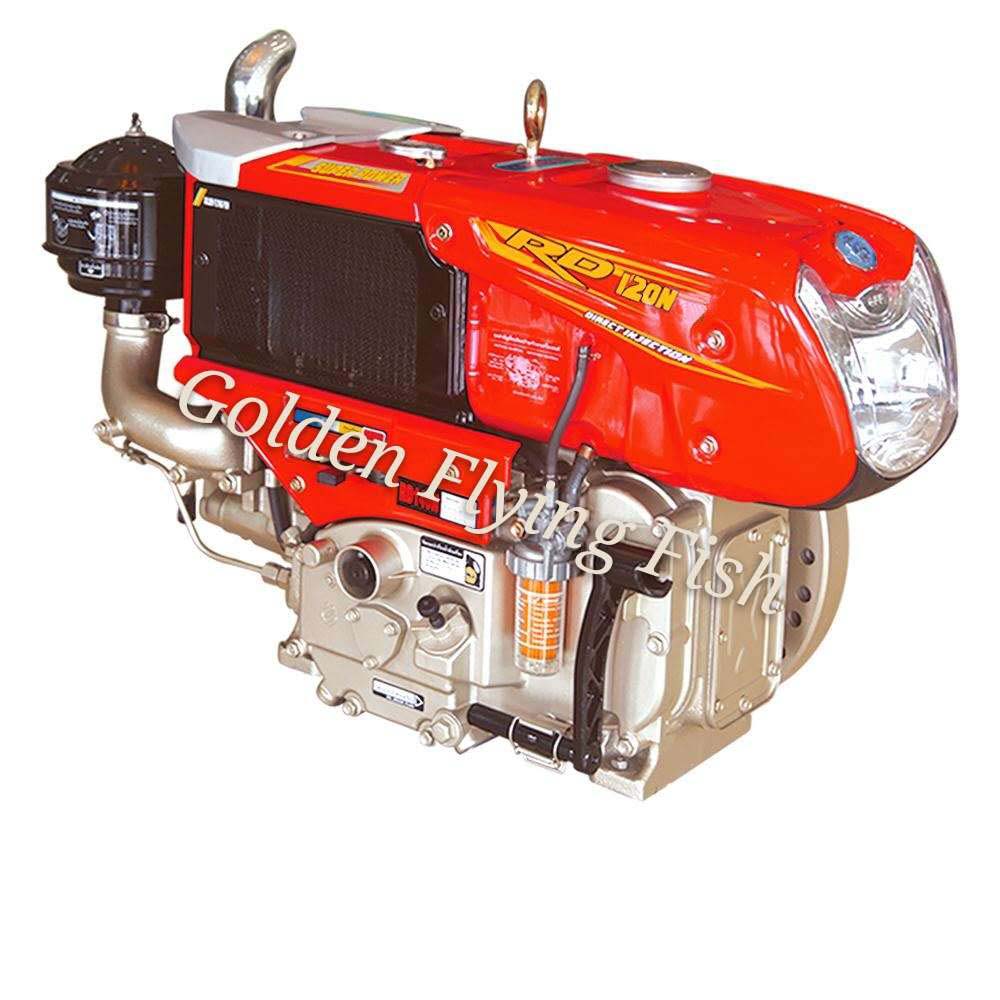

The RD120N is a reliable single-cylinder diesel engine engineered for industrial applications and power generation. It features efficient direct injection technology, ensuring stable performance and consistent output in demanding work environments. The compact design facilitates easy installation, while durable construction supports long-term operational needs.
Technical Specifications
Performance Metrics
12 HP
Maximum Output
8.82 kW
Max Power
2,400 rpm
Rated Speed
Physical Dimensions
- Displacement: 0.651L
- Bore x Stroke: 96x90mm
- Overall Dimensions: 805x360x498mm
- Net Weight: 113kg
- Engine Type
- Single-cylinder, horizontal, 4-stroke, water-cooled
Operational Features
- Combustion System
- Direct Injection
- Starting Method
- Hand CrankES Electric Start
- Specific Fuel Consumption
- 250 g/kW.h
Capacity
Fluid Capacities
| Fluid Type | Capacity |
|---|---|
| Lubricating Oil | 3L |
| Cooling Water | 2.3L |
