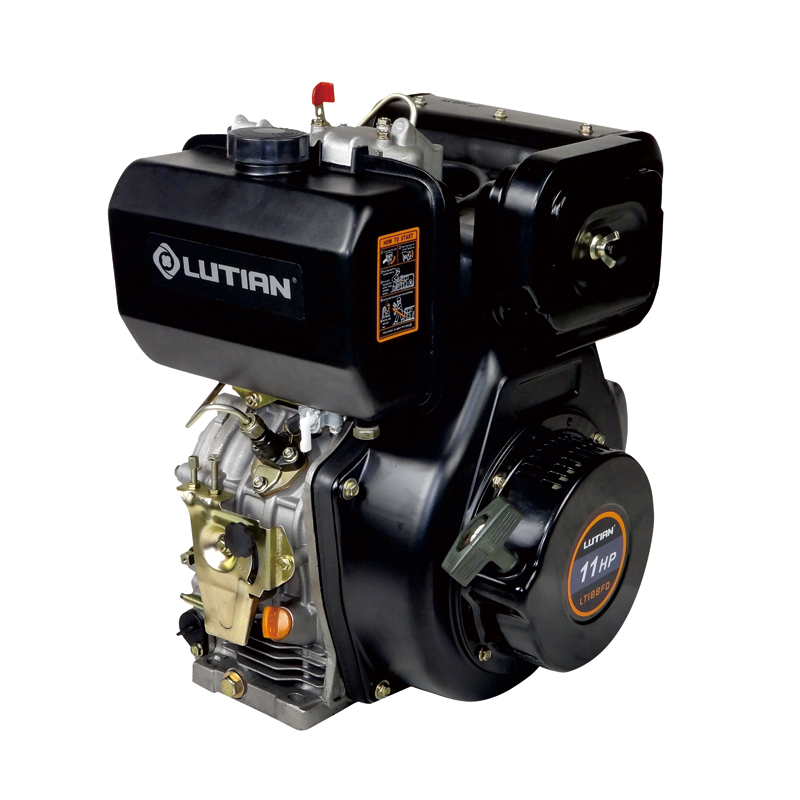

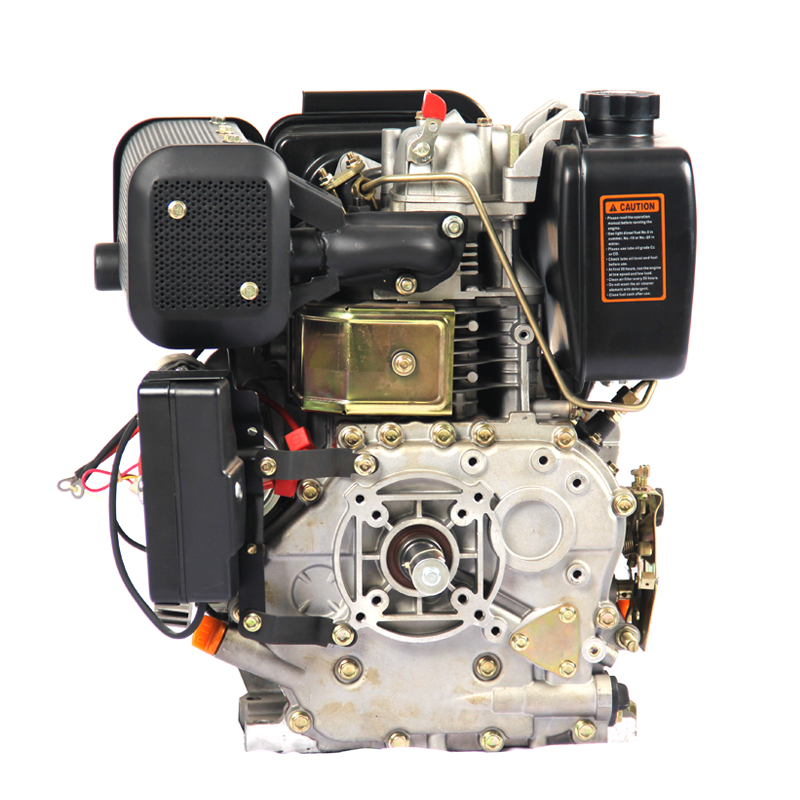

Single Cylinder Air-Cooled Diesel Engine
This single-cylinder diesel engine features an air-cooling system and direct fuel injection. It is suitable for various applications requiring a reliable and efficient power source, such as generators and water pumps.
Technical Specifications
Overview
High-Performance Air-Cooled Diesel Engine
This 10.0HP single-cylinder diesel engine is engineered for professional applications requiring a stable and strong power output. Featuring a direct injection system and efficient air-cooling, it offers a durable solution with low oil consumption and reduced noise levels. Its compact design and optional starting methods make it a versatile and user-friendly choice for powering generators, water pumps, and construction equipment.
Performance Metrics
Engine Power
10 HP
Rated Power
Technical Specifications
- Engine Type
- Single cylinder, air-cooled, direct injection
- Shaft Design
- Horizontal shaft
- Starting Options
- RecoilElectric (Optional)
- Cylinder Liner Material
- Durable cast iron
Maintenance & Operation
Maintenance Intervals
| Component | Action | Frequency |
|---|---|---|
| Engine & Tube Oil | First Replacement | 50 Hours |
| Engine & Tube Oil | Regular Change | Every 200 Hours |
| Air Cleaner | Cleaning | Every 50 Hours |
| Air Cleaner | Replacement | Every 300 Hours |
Fuel & Oil Requirements
- Use No.-10 or No.-0 diesel oil or above
- Use tube oil of grade CD or above
- Check oil and fuel levels before every start
- Check fuel circuit after every use
Key Features
Product Benefits
Low NoiseLow Oil ConsumptionEnvironment FriendlyHigh DurabilityUser-Friendly
Applications
- Recommended Applications
- Power GeneratorsWater PumpsSmall Construction EquipmentIndustrial Machinery
