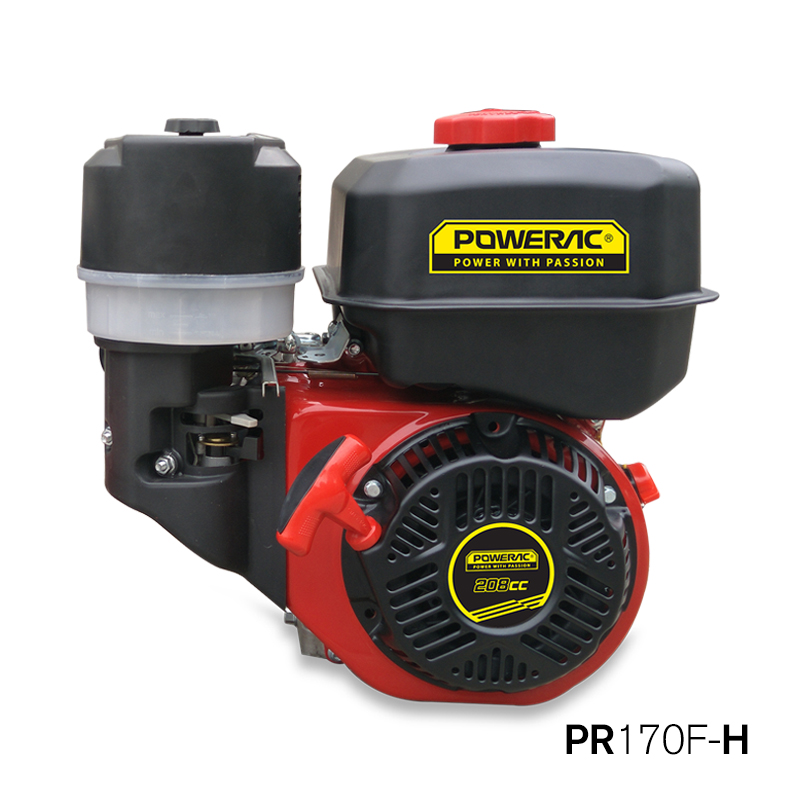

Single-Cylinder 4-Stroke Engine
This single-cylinder, 4-stroke engine features an overhead valve (OHV) configuration for improved efficiency and a recoil starter for easy starting. It is suitable for use in generators, water pumps, and other power equipment.
Technical Specifications
Overview
High-Performance 4-Stroke Engine
This single-cylinder, 4-stroke engine is engineered for reliability and efficient power delivery in various industrial and commercial applications. Featuring an overhead valve design and a robust 212cc displacement, it provides consistent performance for equipment like generators and water pumps. Its compact dimensions and balanced weight make it a versatile choice for diverse machinery requirements.
Performance Metrics
Maximum Output
7 hp
Max Output
3,600 rpm
at
Maximum Torque
13.5 N.m
Max Torque
2,500 rpm
at
Technical Specifications
- Displacement
- 212 cc
- Compression Ratio
- 8.5 : 1
- Bore x Stroke
- 70 x 55 mm
Capacity & Dimensions
- Fuel Tank Capacity
- 5.5 L
- Oil Capacity
- 0.6 L
- Dimensions
- 420 x 365 x 415 mm
Logistics
Weight
| Type | Weight |
|---|---|
| Gross Weight | 16.5 |
| Net Weight | 15.5 |
Container Loading Capacity
- 20GP: 440 units
- 40HQ: 1056 units
