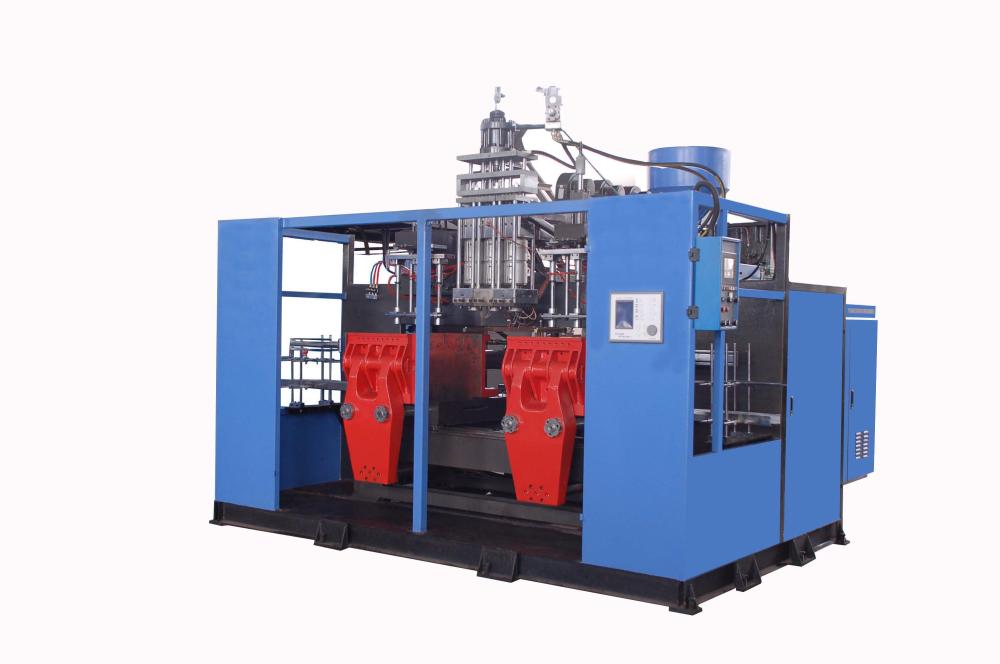

Shampoo Bottle Blow Molding Machine
This automatic blow molding machine is designed for the production of shampoo bottles and other similar plastic containers. It features a robust frame, efficient heating system, and a user-friendly control panel for optimized operation and consistent product quality.
Technical Specifications
Product Overview
High-Efficiency Blow Moulding Solution
This industrial blow moulding machine is engineered for the high-volume production of shampoo bottles and similar plastic containers. It features a robust clamping force and a versatile multi-die system to optimize manufacturing throughput. Designed for precision and reliability, this equipment integrates advanced heating and hydraulic systems to ensure consistent product quality across various container sizes.
Production Capacity
Performance Metrics
1,000 pc/hr
Output Dry Cycle
5 L
Max Container Capacity
70 kg/hr
Plasticizing Capacity
Supported Die Sets
- 1
- 2
- 3
- 4
Technical Specifications
Clamping Specifications
| Parameter | Value |
|---|---|
| Clamping Force | 68 kN |
| Platen Opening Stroke | 200-500 mm |
| Platen Size | 330*370 mm |
| Mould Thickness | 205 mm |
Extruder Details
- Screw Diameter: 65 mm
- Screw L/D Ratio: 24
- Heating Zones: 3
Utilities and Dimensions
Power & Utility Requirements
- Oil Pump Motor: 11/15 kW
- Extruder Heating Power: 13.8 kW
- Extruder Driving Power: 15 kW
- Max System Pressure: 12 MPa
- Air Pressure: 0.7 MPa
- Air Consumption: 0.6 m3/min
- Physical Dimensions & Weight
- Dimensions: 3.1*1.8*2.6 mTotal Weight: 4.5 Ton
