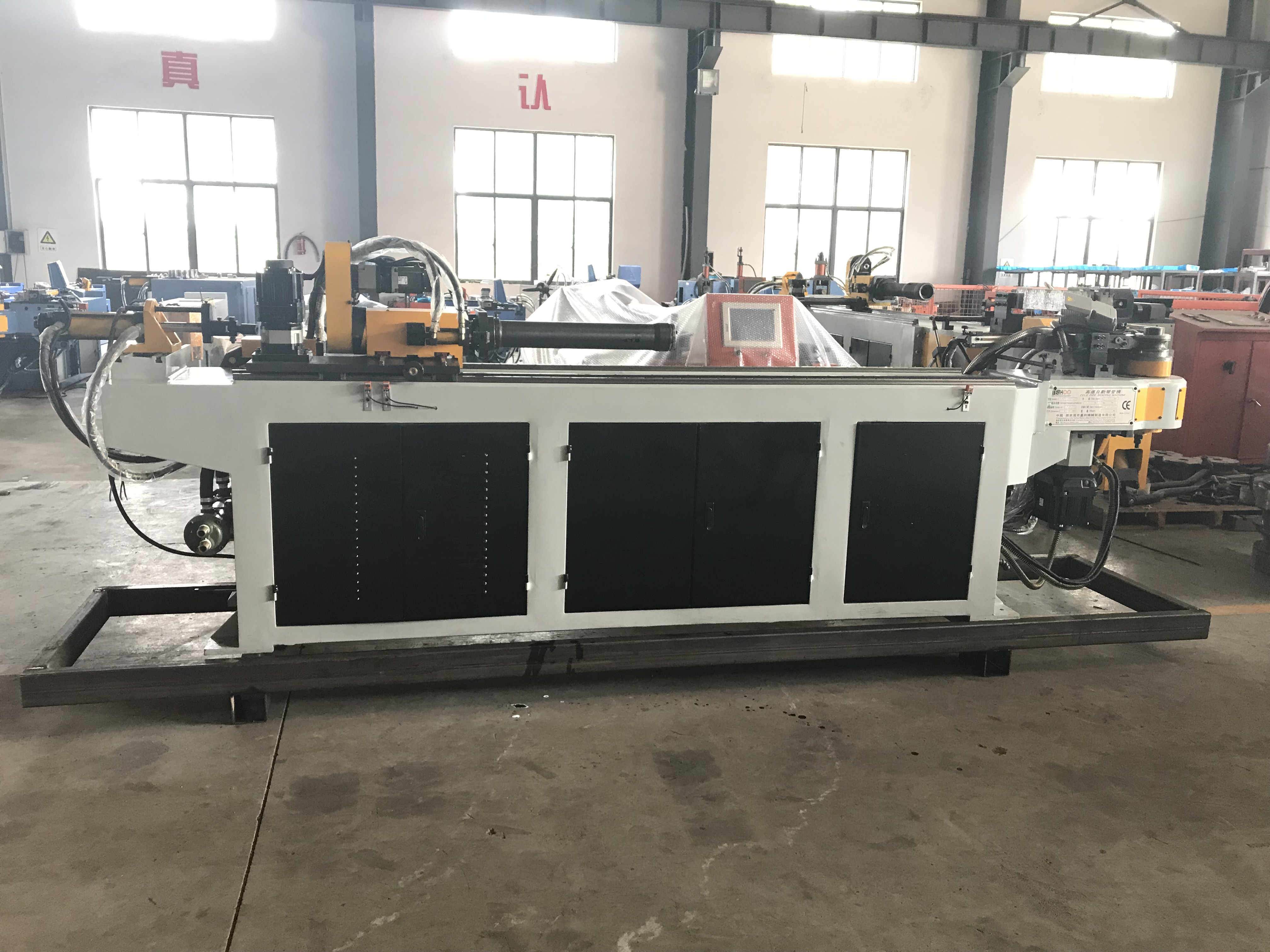

Servo-Controlled Pipe Bending Machine
This high-speed pipe bending machine employs servo control for precise metal forming. It is designed for bending, folding, straightening, and leveling metal pipes with accuracy and efficiency.
Technical Specifications
Overview
High-Precision Servo Pipe Bender
This fully automatic servo-controlled pipe bending machine is engineered for complex three-dimensional metal forming tasks. It integrates advanced servo-motor technology for bending, rotation, and feeding, ensuring high speed and precision. With support for both YBC and XYZ coordinate inputs, it offers versatile operation for diverse industrial applications.
Performance & Control
Automation Capabilities
- Automatic Bending (Servo)
- Automatic Rotation (Servo)
- Automatic Feeding (Servo)
- Automatic Lubrication System
- Control System
- Servo-Controlled3D SimulationRemote DiagnosisYBC InputXYZ Input
Technical Specifications
Included Tooling
- Clamp die
- Wiper die
- Mandrel
- Pressure die
- Bend die
Maintenance Features
- Automatic lubrication system
- Separate oil tank with filter
- Pneumatic Movements
- ClampPressure ClampClutchMandrel
Advanced Features
Specialized Functions
- Anticipated Mandrel Extraction (for thin tubes)
- Reclamp function (unlimited tube length)
- Optional punching hole capability
- Optional cutting capability
- Optional roll bending
Compliance
Certification
CE
