Serpentine Bundy Tube Bender for Condensers
The serpentine bender is designed for bending steel bundy tubes into serpentine shapes. It is widely used in the production of condensers and heat exchangers.
Technical Specifications
Product Overview

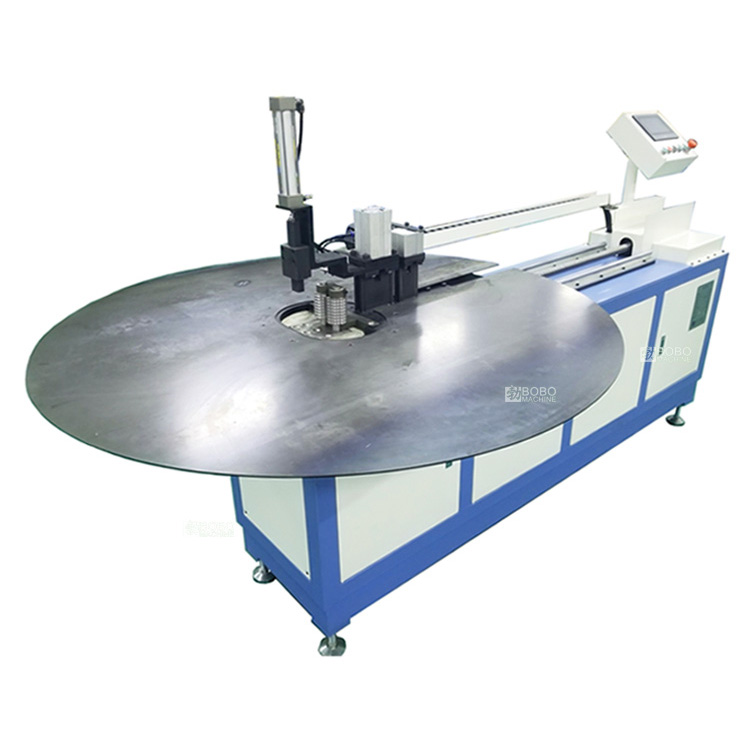

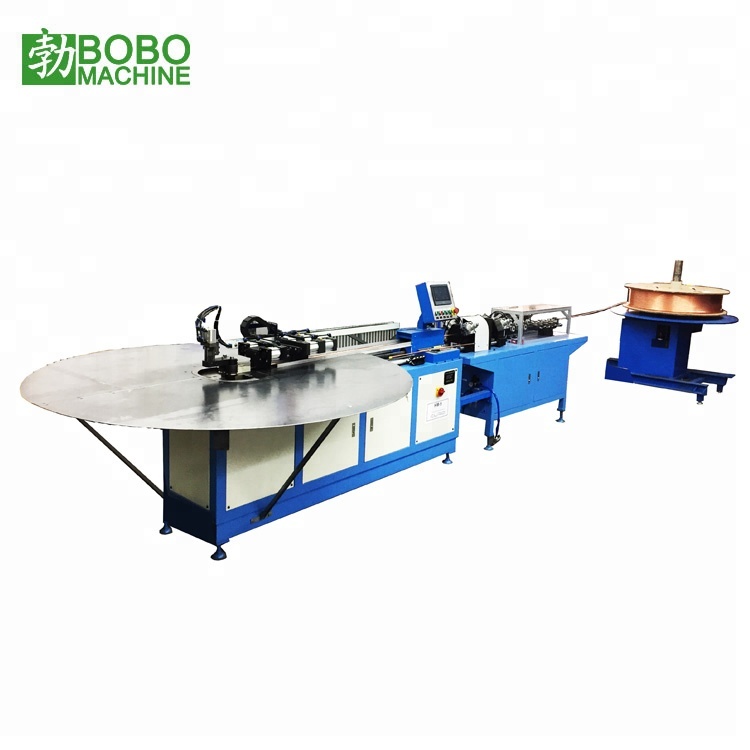

Serpentine Bundy Tube Bender
The WA series semi-automatic serpentine bender is designed for high-efficiency processing of steel and bundy tubes, specifically for condenser and heat exchanger manufacturing. By replacing manual labor with a servo-controlled, PLC-managed system, it achieves superior precision and can bend up to 12 tubes simultaneously. Featuring patented bending tools and structure, the machine ensures minimal deformation, exact bending radii, and consistent appearance across high-volume production cycles.
Technical Performance
Performance Metrics
12 pcs
Max Tubes/Cycle
180 deg
Max Bending Angle
5 KW
Motor Power
1,300 KG
Total Weight
Production Parameters
| Parameter | Specification |
|---|---|
| Tube Diameter | Φ3-12mm |
| Wall Thickness | 0.3-1.0mm |
| Bending Radius | R15-R35 |
| Bending Times | Up to 110 times/cycle |
| Feeding Length | 0-700mm/time |
Components & Quality
Machine Configuration
| Component | Brand |
|---|---|
| Inverter | MITSUBISHI |
| PLC | MITSUBISHI |
| HMI | KINCO |
| Contactor | Schneider |
| Cylinder | DELIXI |
| Servo Motor | ELESY |
- Key Components
- Mitsubishi PLCSchneider ContactorELESY Servo MotorCE Compliant
Physical Specifications
- Overall Dimensions
- 2200 x 1000 x 1580 mm (Excluding table)
- Power Requirements
- 380V, 50Hz, 3Phase
