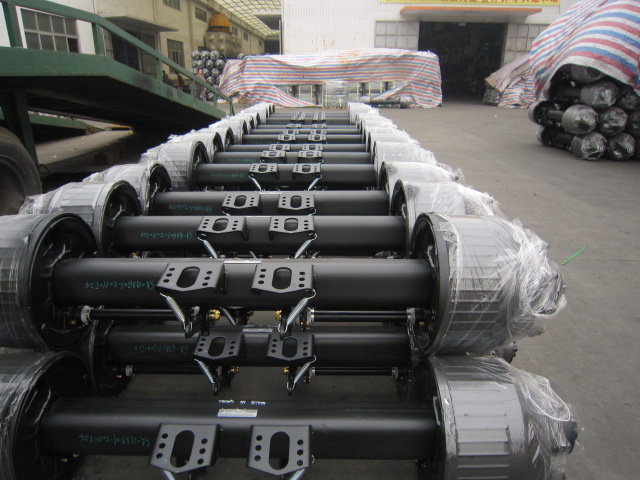

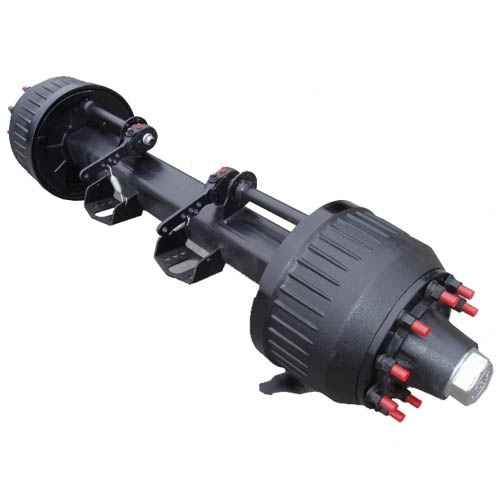

Semitrailer Axle
This semitrailer axle is designed for heavy-duty applications. It provides reliable performance and durability.
Technical Specifications
Product Overview
High-Performance Semitrailer Axles
Engineered for durability and reliability, these semitrailer axles are designed to meet the rigorous demands of the transportation industry. Featuring advanced heat-treatment processes and high-quality alloy materials, the beam construction offers superior load-bearing capacity and stability. With options available for both American and German type configurations, these axles provide a versatile solution for various trailer designs and heavy-duty applications.
Technical Specifications
American Type Capacities
- 8T
- 11T
- 12T
- 13T
- 14T
- 15T
- 16T
- 20T
German Type Capacities
- 10T
- 12T
- 14T
- 16T
- 18T
- Available Axle Types
- American TypeGerman TypeSpoke Wheel AxleLow LoaderConcave Axle
Material Composition
Component Materials
| Component | Material |
|---|---|
| Axle Beam | 20Mn2 |
| Brake Drum | QT450 |
| Hub | HT250 |
| Brake Chamber | Q235 |
| Axle Head | 20Mn2 |
| Self-Locking Nut | 40Cr |
| Washer | 35CrMn |
| Axle Bolt | 35CrMn |
Key Features
Engineering Highlights
20Mn2 Seamless PipeOne-Piece Press ForgingABS ReadyLaser Heat-Treated SpindleNon-Asbestos Brake LiningECO Hub Compatible
Maintenance & Performance
100 %
Hub Cap Fit
