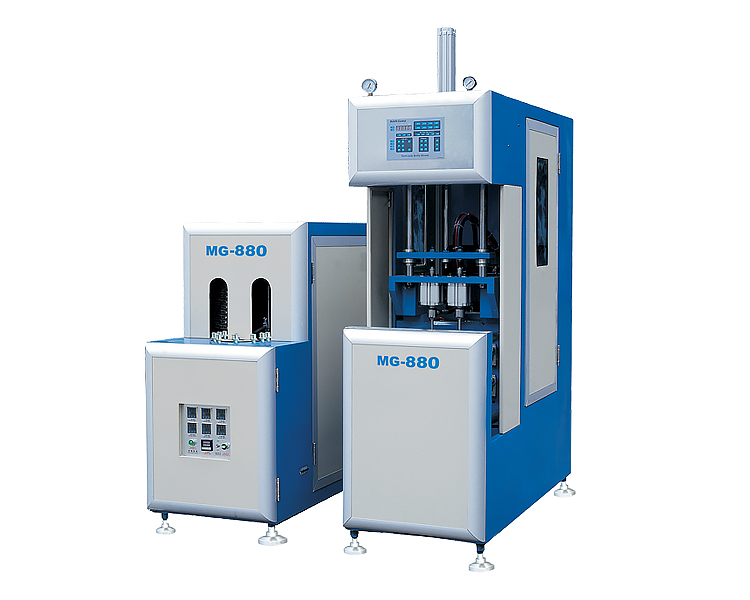

Semi-Automatic PET Stretch Blow Molding Machine
This semi-automatic machine utilizes a two-step process involving preform heating and subsequent blowing within a mold. It is designed to produce PET bottles for various applications.
Technical Specifications
Overview
High-Efficiency PET Blow Molding
This semi-automatic stretch blow molding machine is engineered for precision and reliability in PET bottle production. Designed to meet CE standards, it features a microcomputer-controlled system that ensures accurate technical parameters and consistent bottle quality. The machine is optimized for a wide range of applications, including carbonated beverages, mineral water, cosmetics, and oil bottles, offering a waste rate of less than 0.3%.
- Key Features
- CE StandardMicrocomputer ControlSingle OperatorInfrared HeatingLow Waste Rate
Performance Metrics
Production Capabilities
6 L
Max Bottle Volume
850 pcs/h
Max Output Capacity
0.3 %
Waste Rate
Technical Specifications
Safety Features
- Twin startup switches
- Emergency stop button
- Stable air pressure storage
- Independent temperature control
- Blowing Pressure
- 35 bar
- PLC Time Control Precision
- 0.01 s
Container Samples
Typical Container Specifications
| Type | Capacity | Weight | Cavities |
|---|---|---|---|
| Wine Bottle | 750ml | 50g | 2 |
| Plastic Container | 5000ml | 105g | 1 |
| Small Bottle | 100ml | 12g | 2 |
| PET Bottle | 500ml | 28g | 2 |
| Large Bottle | 1000ml | 30g | 2 |
| Plastic Bottle | 1500ml | 42g | 2 |
