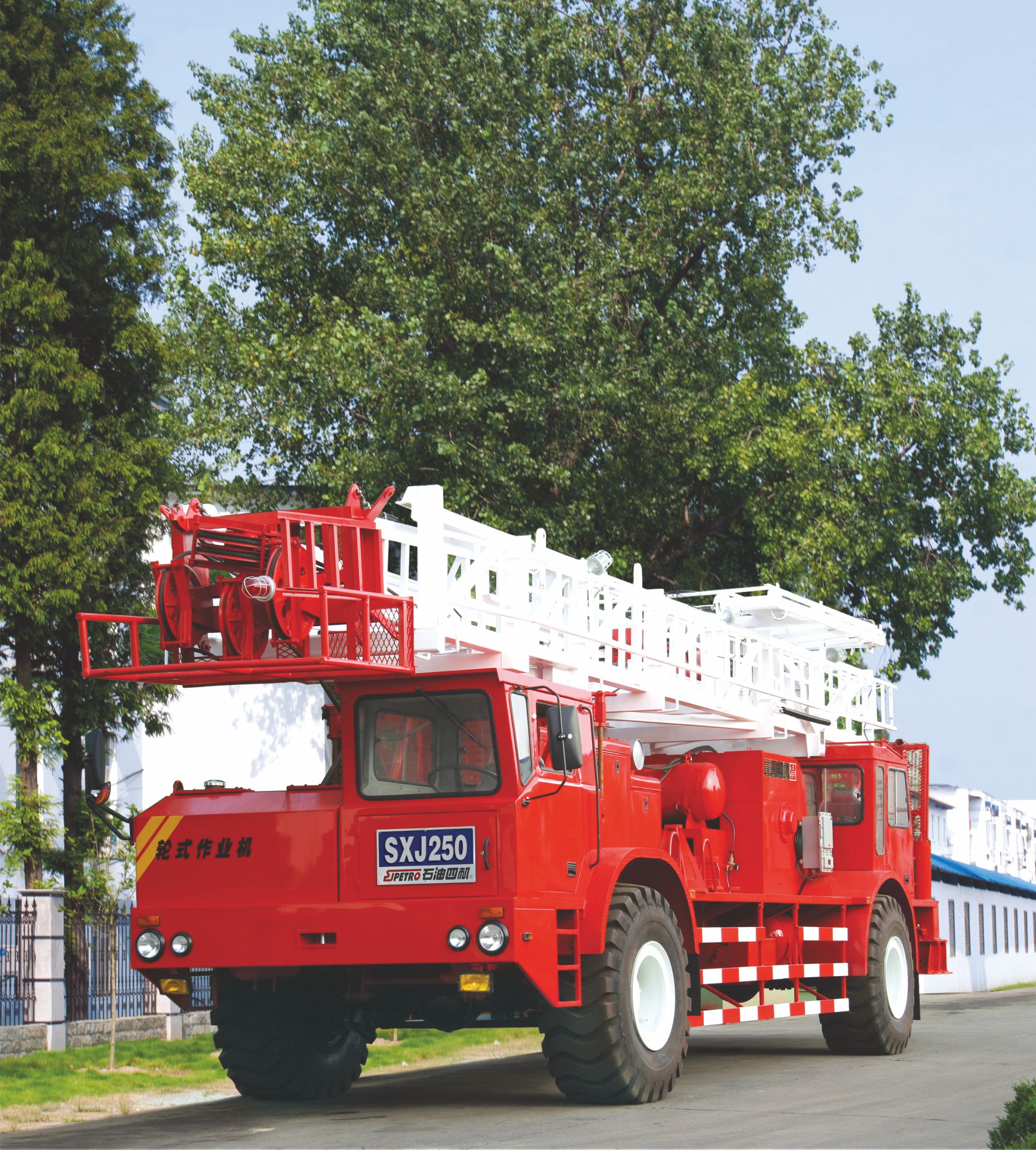

Self-Propelled Workover Rig
This self-propelled workover rig is designed for well maintenance, repair, and completion operations. Its power system, drawworks, and driving system are installed on a carrier for easy installation and movement.
Technical Specifications
Product Overview

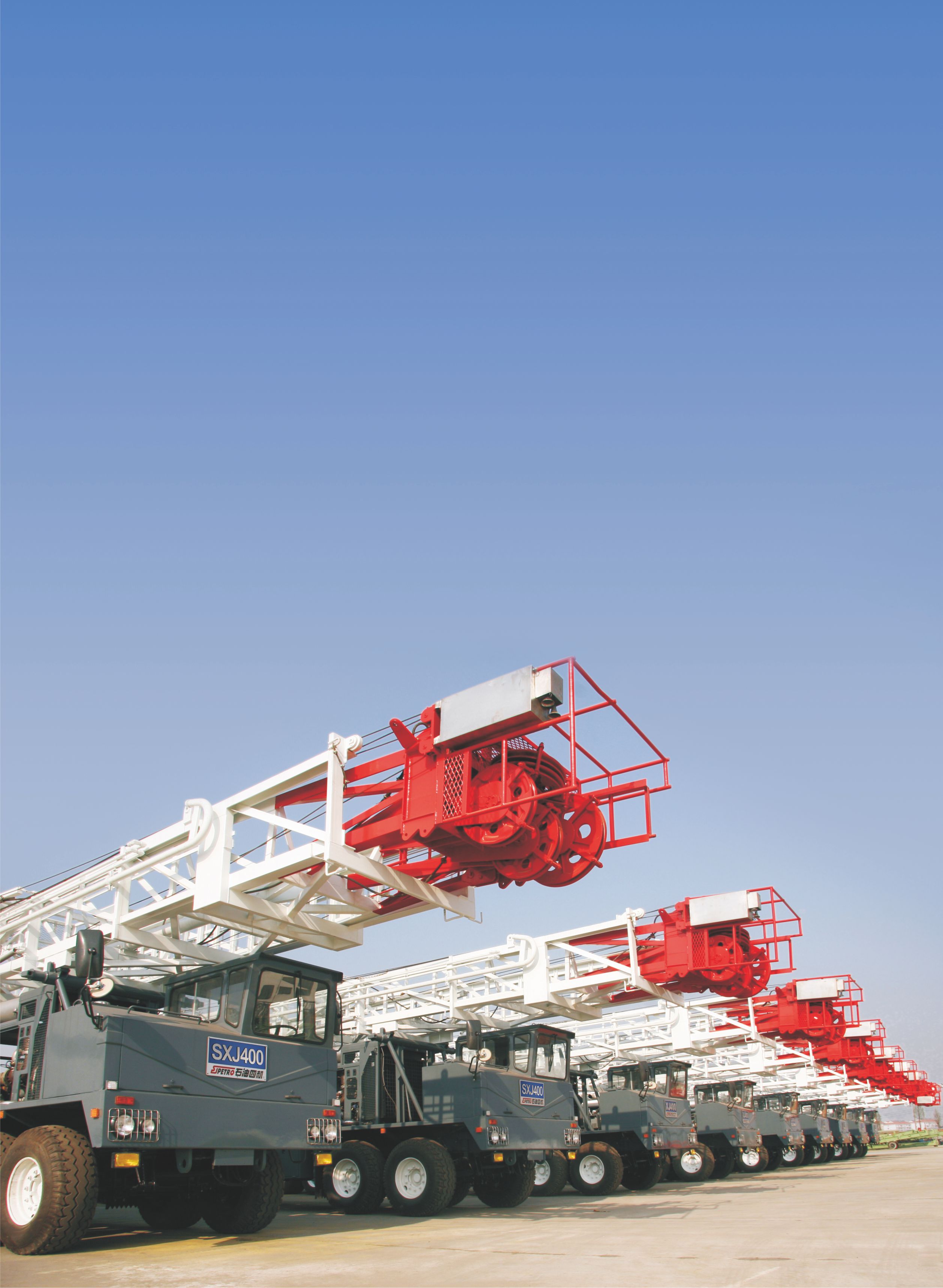

Self-Propelled Workover Rigs
This series of self-propelled workover rigs is engineered for versatile well intervention, offering maximum static loads from 300kN up to 2250kN. Designed for efficiency, these units integrate the power system, drawworks, and carrier chassis into a single mobile platform for rapid deployment. Capable of supporting operations from 1000m to 9000m, these rigs are a reliable solution for both workover and medium-to-shallow well drilling operations.
Technical Specifications
Key Performance Metrics
235 HP
Minimum Power
1,300 HP
Maximum Power
9,000 m
Maximum Depth
Model Specifications Comparison
| Model | Max Static Load | Drawworks Power | Clearance Height |
|---|---|---|---|
| XJ250 | 675kN | 250hp | 21m |
| XJ350 | 900kN | 350hp | 31.7m |
| XJ450 | 1125kN | 450hp | 34m |
| XJ550 | 1350kN | 550hp | 34m |
| XJ650 | 1470kN | 650hp | 35m |
| XJ1000 | 1800kN | 750hp | 38m |
| XJ1200 | 2250kN | 1000hp | 39.3m |
- Available Models
- XJ250XJ350XJ450XJ550XJ650XJ1000XJ1200
Equipment Features
Core System Composition
- Chassis
- Power and driving system
- Drawworks system
- Telescopic mast
- Hydraulic, air, and electric control systems
- Rotary system
