Sea Engineering Geological Exploration Drilling Rig

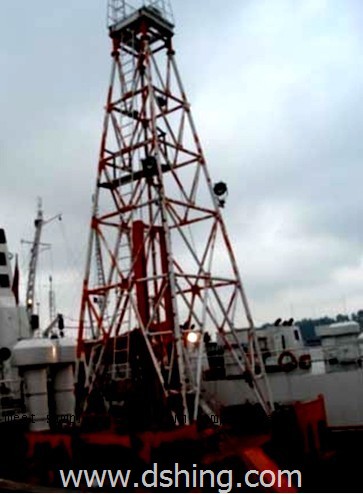

This sea engineering geological exploration drilling rig is designed for offshore geotechnical investigations. It features a robust tower structure for supporting drilling equipment and is capable of operating in marine environments.
Technical Specifications
Overview
High-Performance Sea Engineering Drilling Rig
The DSHD-600 is a top-drive power head drilling rig engineered specifically for complex marine geological exploration and pile hole drilling. Designed for versatility, it operates effectively in water depths up to 80 meters and is suitable for both offshore and land-based geotechnical projects. With its advanced adjustable rotary speed frequency changer and robust construction, it delivers precise drilling performance in diverse environmental conditions.
Performance Metrics
Key Performance Indicators
600 m
Max Hole Depth
90 kW
Total Motor Power
7,500 kg
Total Weight
Drilling Capabilities
Drilling Specifications
| Parameter | Range/Value |
|---|---|
| Hole Diameter | 110 - 600 mm |
| Hole Depth | 60 - 600 m |
| Rod Diameter | 50 - 127 mm |
Technical Specifications
Rotary Speed (Top Drive)
- Low speed range (forward/reverse): 7-200 rpm
- High speed range (forward/reverse): 14-700 rpm
Hoist Lifting Capacity
- Main hoist: 50 kN
- Auxiliary hoist: 25 kN
Mast Specifications
- Height: 12 m
- Load capacity: 400 kN
- Feeding Stroke
- 3500 mm
Hydraulic System
Hydraulic Break Out Apparatus
- Centre hole diameter: 450 mm
- Break out torque: 2200 Nm
- Supported rod/casing diameters: 50 mm, 127 mm, 178 mm
Operational Environment
- Operating Conditions
- Water Depth up to 80mWind scale < 5 gradeMarine EnvironmentLand-based compatible
