SCARA Robot for Industrial Automation
This SCARA robot is widely used in the electronics, plastic, drug, and food industries. It performs grasping, assembly, and gluing operations.
Technical Specifications
Overview
High-Performance SCARA Robot
This SCARA robot is engineered for demanding industrial automation tasks, offering a balance of high speed and precision. It is widely utilized in sectors such as electronics, plastics, pharmaceuticals, and food processing for operations including assembly, material handling, and gluing. Its robust construction and compact design ensure reliable, consistent performance in fast-paced manufacturing environments.
Performance Metrics
Key Performance Indicators
0.68 s
Standard Cycle Period
5 kg
Max Payload
0.01 mm
Repeatability (X,Y,Z)
Axis Speed
| Axis | Top Speed |
|---|---|
| X and Y Axes | 5.5 m/s |
| Z Axis | 1.1 m/s |
| R Axis | 588 °/s |
Technical Specifications

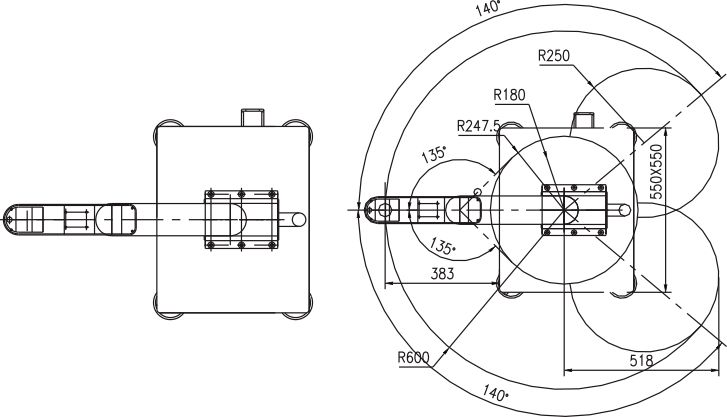

Range of Motion
| Axis | Arm Length / Stroke | Rotation Range |
|---|---|---|
| X Axis | 350 mm | ±140° |
| Y Axis | 250 mm | ±135° |
| Z Axis | 150 mm | - |
| R Axis | - | ±360° |
Loading Capacity
- Rated Load: 2 kg
- Maximum Load: 5 kg
- Machine Weight
- 160 / 23 kg
Applications
Primary Operations
GraspingAssemblyGluing
- Industry Applications
- ElectronicsPlastic IndustryPharmaceuticalsFood Industry
