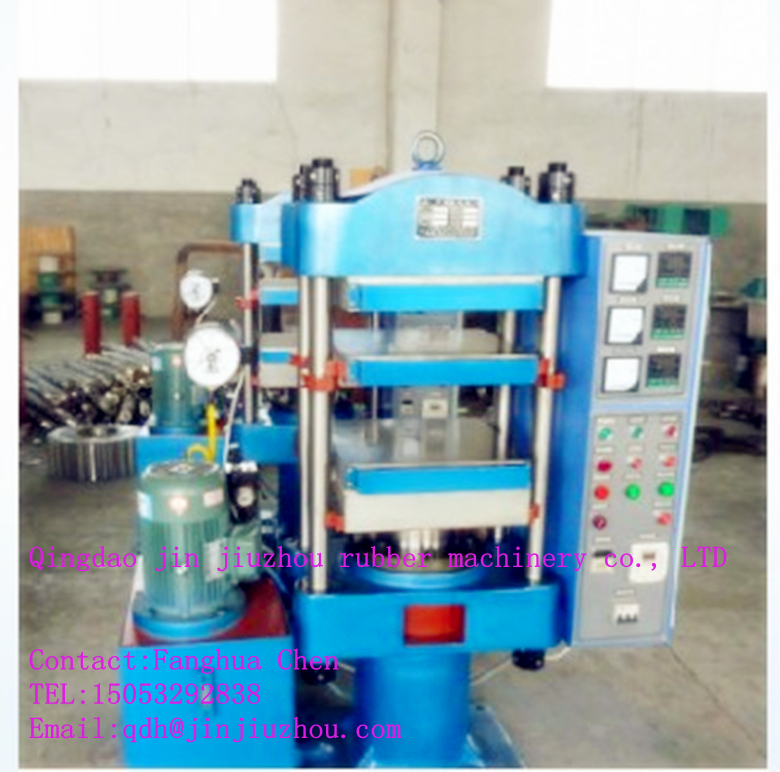

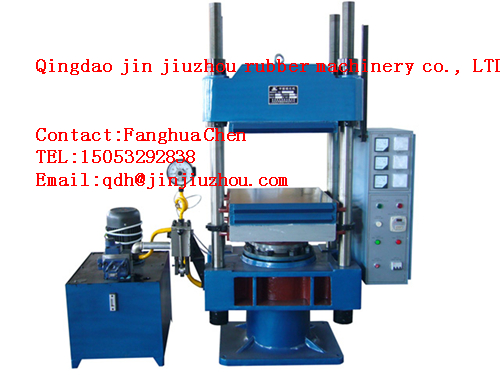

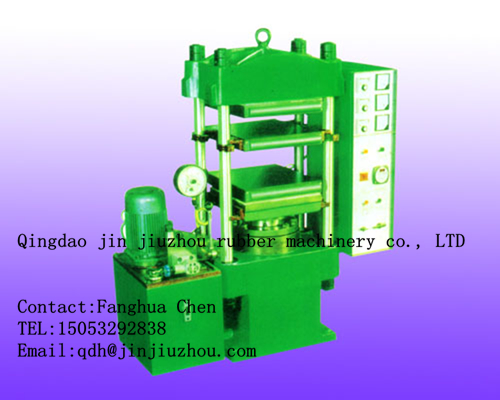

Rubber Vulcanizing Press with Multi-Level Platens
This rubber vulcanizing press features even hot plate temperature. Its rapid vacuum system increases economic efficiency for various rubber parts.
Technical Specifications
Product Overview
High-Efficiency Rubber Vulcanizing Press
This advanced rubber vulcanizing press is designed for high-speed production, featuring a multi-level platen system and a 90-degree opening angle for superior operational convenience. Each oil system is designed independently, ensuring consistent performance, quiet operation, and minimal maintenance requirements. With slow-moving speed capabilities for precise alignment, this machine guarantees accurate and safe molding processes for various industrial rubber components.
Key Metrics
Performance Capacity
300 Ton
Max Clamping Force
90 degree
Opening Angle
53 kW
Max Total Power
Technical Specifications
Model Specifications
| Specification | 150Ton | 200Ton | 250Ton | 300Ton |
|---|---|---|---|---|
| Stroke (mm) | 300 | 250 | 250 | 250 |
| Heating Plate (mm) | 460x460 | 503x508 | 600x650 | 650x650 |
| Cylinder Diameter (mm) | 300 | 350 | 400 | 450 |
| Total Power (kW) | 29 | 38 | 49 | 53 |
| Gross Weight (kgs) | 5500 | 6000 | 8500 | 10500 |
Operational Features
System Highlights
- Dual pressure hydraulic system design
- Independent oil systems for each shaft
- High-speed production capacity
- Precision slow-moving alignment mode
- Consistent, low-noise operation
- Capabilities
- Industrial GradeMulti-Level PlatensDual-Shaft Operation
