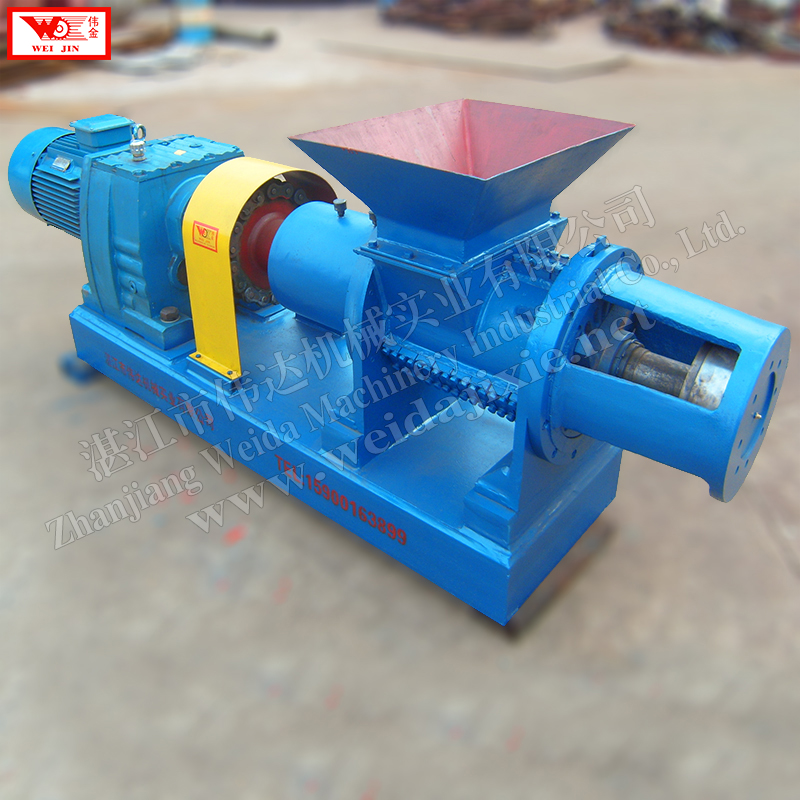

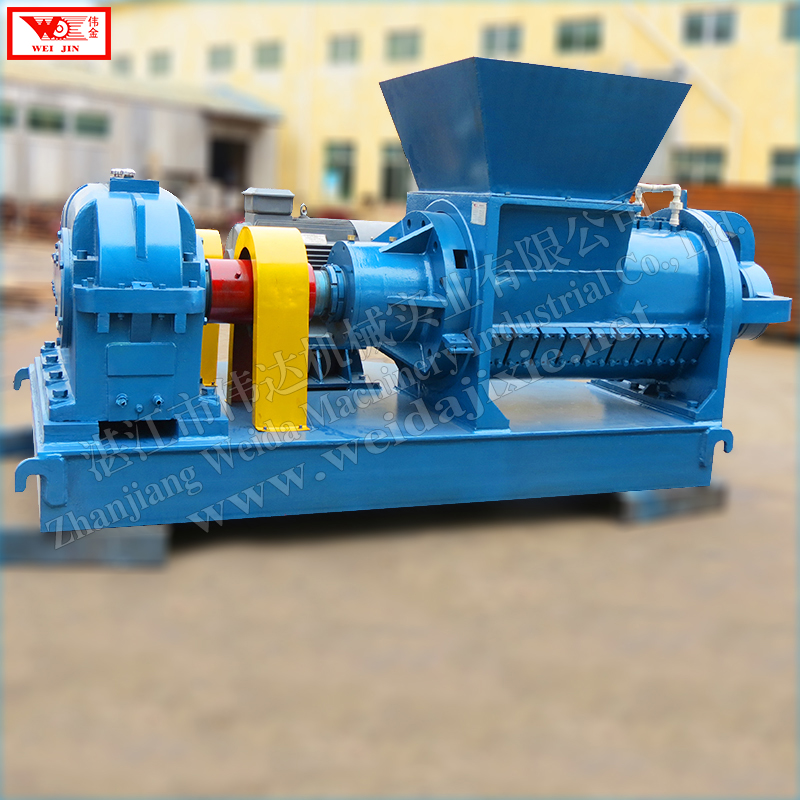

Rubber Crushing and Cleaning Machine
This multifunctional machine is designed for crushing a wide range of rubber materials. It features high output, long service life, and adjustable outlet specifications.
Technical Specifications
Product Overview
Industrial Rubber Crushing & Cleaning System

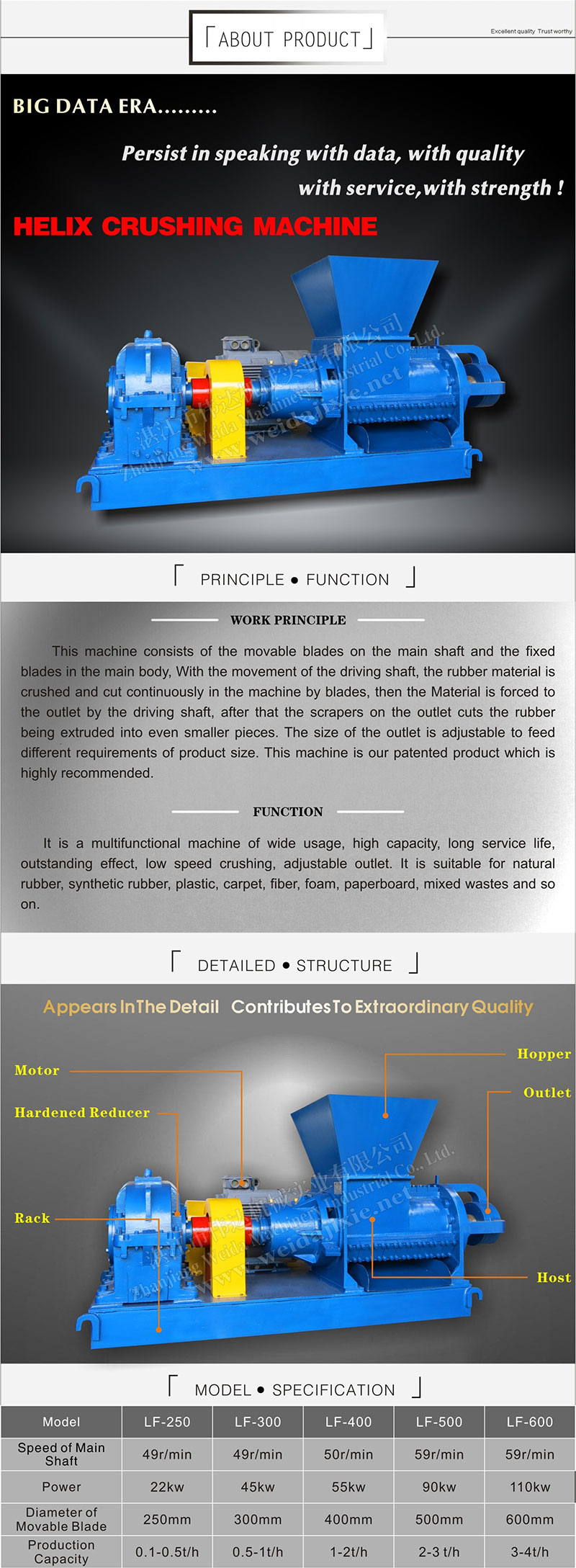

This multifunctional crushing machine is designed for efficient, low-speed processing of a wide range of natural and synthetic rubber materials. It features a robust design that ensures long tool service life, high production output, and an adjustable outlet for specific size requirements. Engineered for industrial reliability, this machine provides a sustainable, high-performance solution for rubber recycling and manufacturing preparation.
Technical Specifications
Performance Metrics
49 r/min
Min Main Shaft Speed
110 kW
Max Power
4 t/h
Max Capacity
Model Specifications
| Model | Power (kW) | Blade Dia (mm) | Capacity (t/h) |
|---|---|---|---|
| LF-250 | 22 | 250 | 0.1-0.5 |
| LF-300 | 45 | 300 | 0.5-1 |
| LF-400 | 55 | 400 | 1-2 |
| LF-500 | 90 | 500 | 2-3 |
| LF-600 | 110 | 600 | 3-4 |
Capabilities
Key Advantages
- Adjustable outlet for customized crushing size
- Wear-resistant alloy blades for extended service life
- Low-speed crushing mechanism for energy efficiency
- Semi-closed processing reduces environmental pollution
- High torque transmission via hardened reducer
- Applicable Materials
- Natural RubberSynthetic RubberLatex ProductsTiresInner TubesConveyor BeltsPlasticFoamPaperboard
