Rotary Sifter for Feed Production
This rotary sifter employs circular, oval, and linear motions for effective sifting. It is suitable for screening and grading powder and pellet feed.
Technical Specifications
Product Overview
Rotary Sifter for Feed Production
This rotary sifter is engineered for high-efficiency screening and grading of powder and pellet feed. It utilizes a combination of circular, oval, and linear motions to achieve superior sifting performance. Designed for durability and quiet operation, it features an improved elastic support system and a reinforced machine seat for long-term reliability in industrial agricultural environments.
Technical Specifications
Performance Matrix
| Model | Power (kW) | Material | Capacity (t/h) |
|---|---|---|---|
| SFJH80×2C | 1.5 | Pellet | 5-8 |
| SFJH80×2C | 1.5 | Mash | 4-6 |
| SFJH100×2C | 3 | Pellet | 8-10 |
| SFJH100×2C | 3 | Mash | 6-8 |
| SFJH120×2C | 4 | Pellet | 10-15 |
Key Features
Operational Advantages
- Tilt angle of 5-10 degrees for optimized sifting effect
- Balanced weight design ensures low-noise operation
- Improved elastic tail support reduces vibration
- Quick-change screen frames with integrated sealing
- Enhanced wire rope hanging structure to minimize wear
Certifications
- Compliance
- ISO9001CESGSQuality Certified

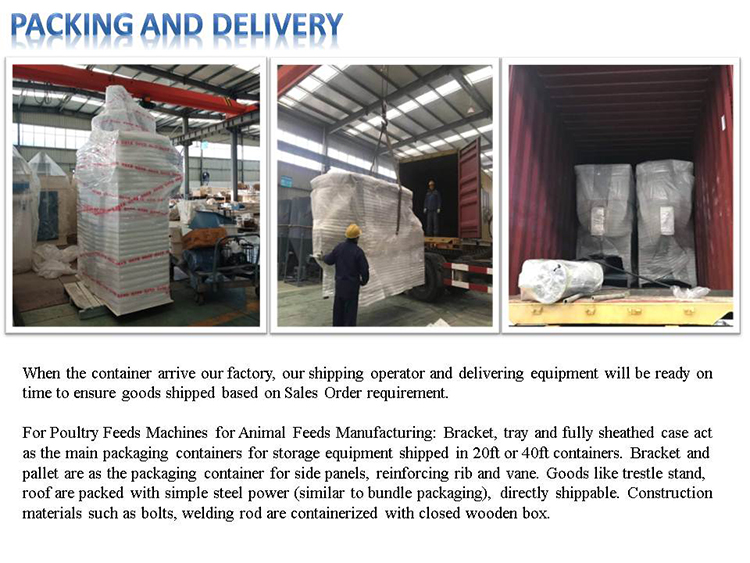

Logistics
- Packaging and Transit
- Standard export wooden case; transportation via Ocean or Land freight.
