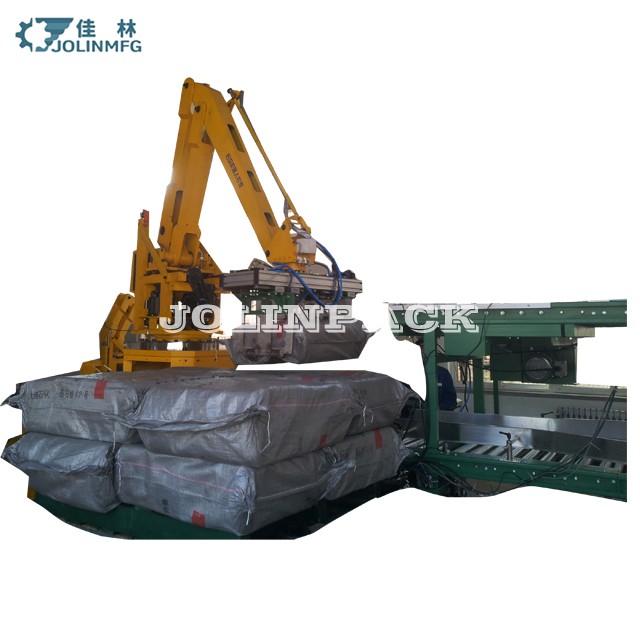

Robotic Palletizer for Bag and Carton Handling
This robotic palletizer automates the handling of bags, cartons, bottles, and cans. The system integrates a multi-axis robot arm with conveyor systems for efficient and precise pallet loading.
Technical Specifications
Overview
High-Efficiency Robotic Palletizer
This automated palletizing solution is designed to optimize end-of-line packaging operations for bags and cartons. The system integrates advanced group organizing, automated pushing, and pallet handling to streamline production workflows. Equipped with a robust PLC-based control system and pneumatic functionality, it offers precise, high-speed handling while minimizing labor requirements and maximizing throughput in industrial environments.
Technical Specifications
Operating Capacity
15 units/min
Minimum Rate
30 units/min
Maximum Rate
Pneumatic System
- Operating Pressure: 0.5MPa - 0.6MPa
- Air Consumption: 45NM3/Hour
- Power Consumption
- 10 KW
- Voltage/Frequency
- 380V AC 50Hz
Physical Dimensions
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
Performance & Safety
- Operating Noise Level
- 75 db
System Components
- Integrated Modules
- PLC ControlTouch Screen InterfacePneumatic SystemBag/Carton PusherPallet StorerConveyor System
