Technical Specifications
Product Overview

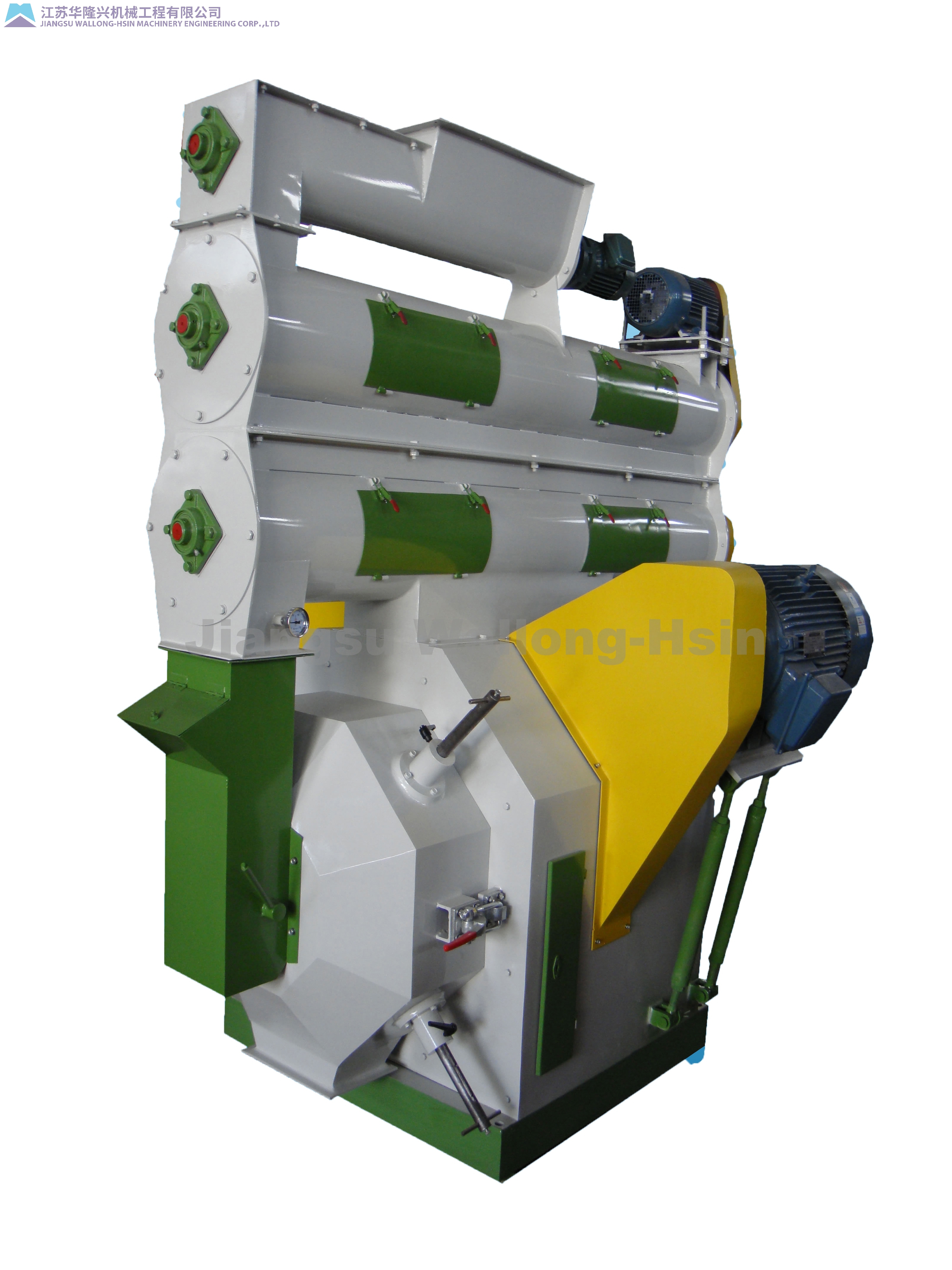

Industrial Ring-Die Pelletizing Mill
This robust ring-die pelletizing mill is engineered for high-capacity production of cylindrical pellets from biomass materials like straw and light particles. It features heavy-duty construction with a combination of steel and cast iron components to ensure stability and long-term durability in industrial environments. Equipped with adjustable parameters for feed rate and roller pressure, this mill allows for precise control over pellet density and size to meet diverse operational requirements.
Technical Specifications
Performance Metrics
1 t/h
Minimum Capacity
2 t/h
Maximum Capacity
- Inner Die Diameter
- 350 mm
- Pellet Diameter Range
- 2-12 mm
Electrical Systems
Motor Specifications
| Motor Type | Power Output |
|---|---|
| Main Motor | 60 |
| Feeding Motor | 1.5 |
Operating Features
Safety Equipment
- Overload protection
- Emergency stop mechanisms
- Compatible Feedstock
- StrawLight particlesBiomassAnimal feed
