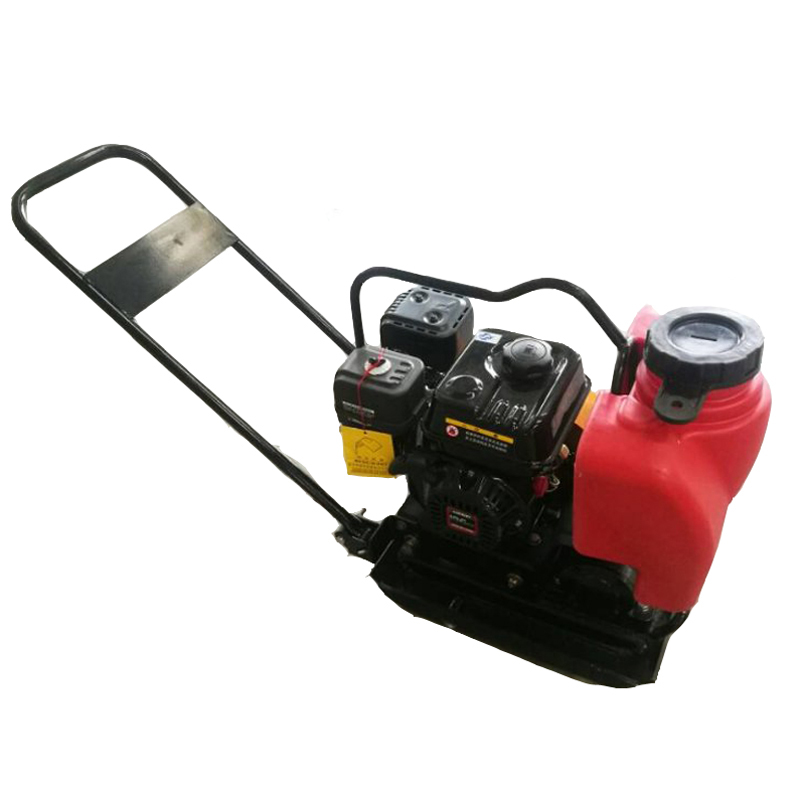

Reversible Plate Compactor
This plate compactor is designed for efficient soil compaction in construction and landscaping applications. The reversible operation allows enhanced maneuverability and control in confined spaces.
Technical Specifications
Product Overview
Professional Soil Compaction
The CPC-240-D is a robust reversible plate compactor engineered for efficient soil compaction in construction and landscaping projects. Its reversible design offers superior maneuverability, making it ideal for trench work and confined spaces. Built with a durable steel base plate and a powerful engine, this machine delivers consistent force and reliability for granular soils, asphalt, and mixed materials.
Performance Specifications
Key Performance Metrics
35 kN
Centrifugal Force
5,200 v.p.m
Vibration Frequency
24 m/min
Max Traveling Speed
Technical Details
Physical Dimensions and Weight
| Specification | Value |
|---|---|
| Operating Weight (kg) | 255 |
| Length (mm) | 1,340 |
| Width (mm) | 450 |
| Height (mm) | 960 |
| Plate Length (mm) | 700 |
| Plate Width (mm) | 450 |
- Key Features
- Reversible operationSteel base plateVibration-dampening handlesProtective frame
Engine and Operation
Power and Capability
- Power Source: Yanmar L70
- Max Power Output: 4.5 kW (7 ps)
- Limited Gradeability: 50 cm
