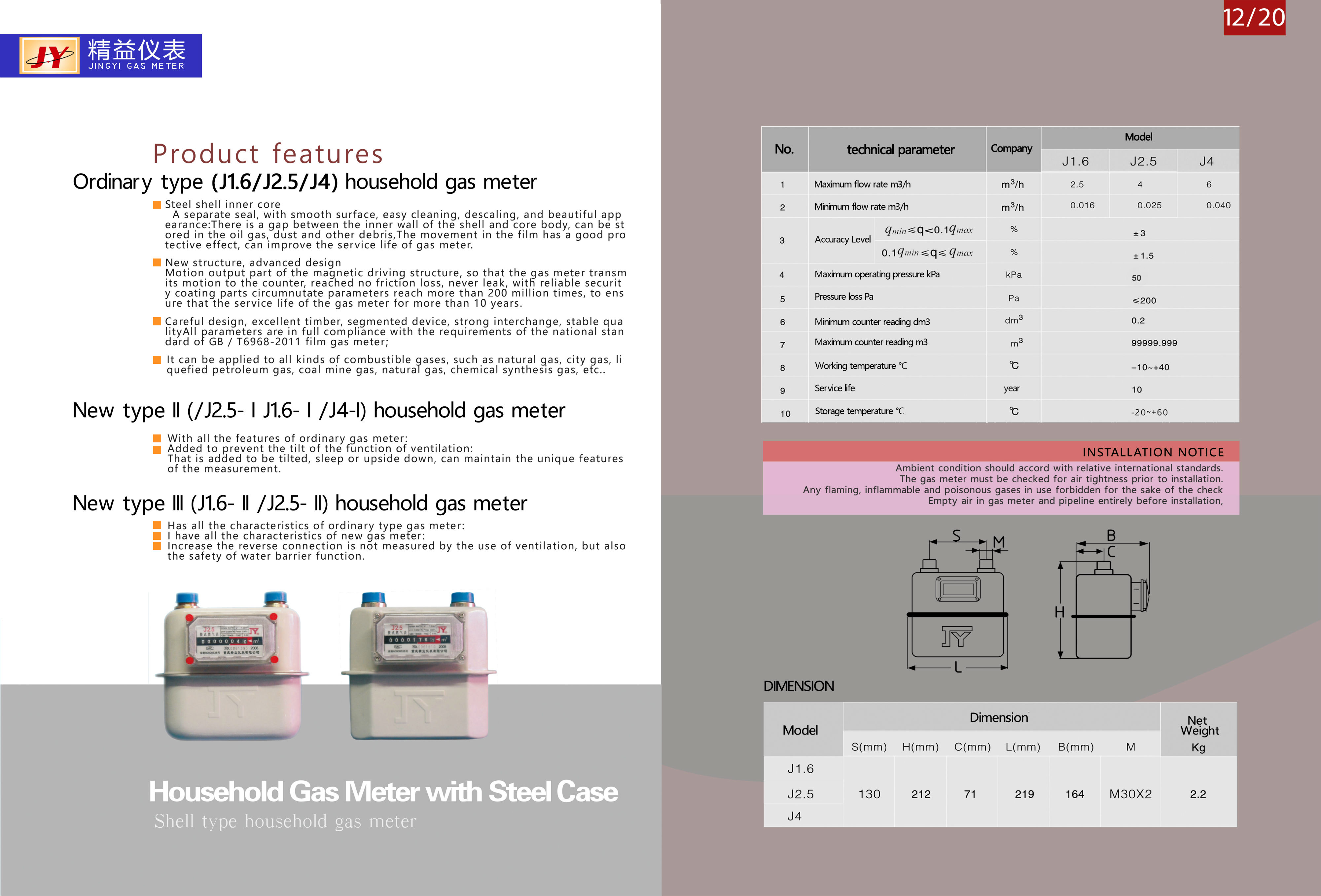

Residential Diaphragm Gas Meter
Diaphragm gas meter designed for measuring gas consumption in residential settings. It features a mechanical counter to display gas usage in cubic meters.
Technical Specifications
Product Overview
Residential Diaphragm Gas Meter
This residential diaphragm gas meter is designed for precise measurement of various combustible gases, including natural gas, city gas, and liquefied petroleum gas. It features a durable steel shell with an advanced magnetic driving structure, ensuring reliable security and an extended service life of over 10 years. The design includes a separate seal for easy cleaning and maintenance, making it a robust solution for household gas consumption monitoring.
Technical Specifications
Flow Rate Specifications
| Model | Max Flow (m³/h) | Min Flow (m³/h) |
|---|---|---|
| J1.6 | 1.6 | 0.016 |
| J2.5 | 2.5 | 0.025 |
| J4 | 4 | 0.04 |
Operating Parameters
50 kPa
Max Operating Pressure
200 Pa
Max Pressure Loss
10 years
Service Life
Accuracy Standards
- Accuracy Level: ±3% (Qmin ≤ Q < 0.1Qmax)
- Accuracy Level: ±1.5% (0.1Qmax ≤ Q ≤ Qmax)
- Compliance: GB/T6968-2011
Environmental Requirements
Temperature Ranges
-10 °C
Working Temp Min
40 °C
Working Temp Max
-20 °C
Storage Temp Min
60 °C
Storage Temp Max
Physical Dimensions
Dimensions (mm)
| Model | S | H | C | L | B |
|---|---|---|---|---|---|
| J1.6 / J2.5 / J4 | 130 | 212 | 71 | 219 | 164 |
- Net Weight
- 2.2 kg
Features
Key Features
Steel Shell Inner CoreMagnetic Driving StructureEasy Cleaning & DescalingAnti-Tilt FunctionalityReverse Connection Protection
- Compatible Gases
- Natural GasCity GasLiquefied Petroleum GasCoal Mine GasChemical Synthesis Gas
