Technical Specifications
Product Overview

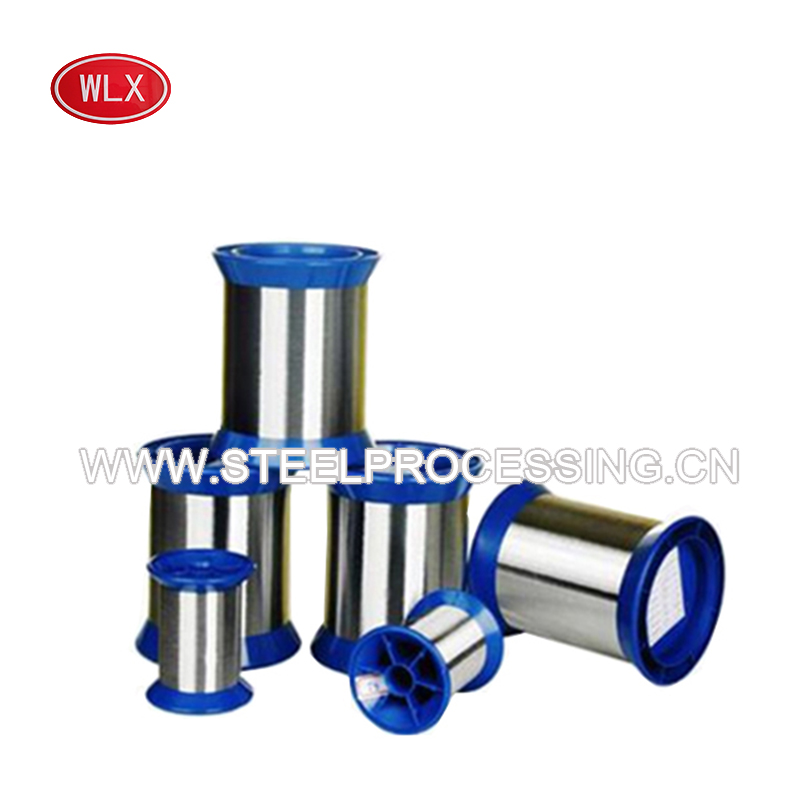

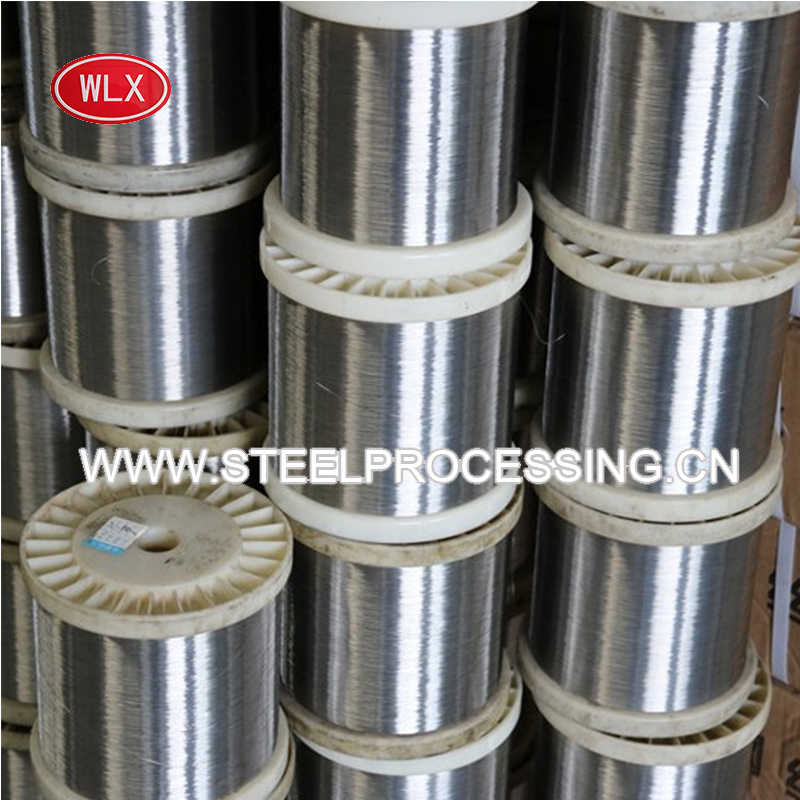

High-Performance Microfilament Wire
This stainless steel microfilament wire offers exceptional strength, stability, and corrosion resistance for high-precision industrial applications. Engineered to be thinner than a human hair, the material is remarkably soft and flexible, making it ideal for the textile, aerospace, and medical sectors. It provides superior shielding, radiation protection, and anti-magnetic properties to meet the needs of advanced bio-chemical and petrochemical industries.
Material Specifications
Series Grades
- 200 series
- 300 series
- 400 series
Surface Finishes
BrightCloudyPlainBlack
- Available Materials
- 304304L316316L201410
Technical Standards
- Compliance Standards
- ASTMENDINJIS
Physical Dimensions
Diameter Range
0.018 mm
Minimum Diameter
5 mm
Maximum Diameter
Diameter Tolerance Table
| Diameter Range (mm) | Tolerance (mm) |
|---|---|
| 0.018-0.049 | +0.002/-0.001 |
| 0.050-0.074 | ±0.002 |
| 0.075-0.089 | ±0.002 |
| 0.090-0.109 | +0.003/-0.002 |
| 0.110-0.169 | ±0.003 |
| 0.170-0.199 | ±0.004 |
| 0.200-0.299 | ±0.005 |
| 0.300-0.499 | ±0.006 |
