Technical Specifications
Overview

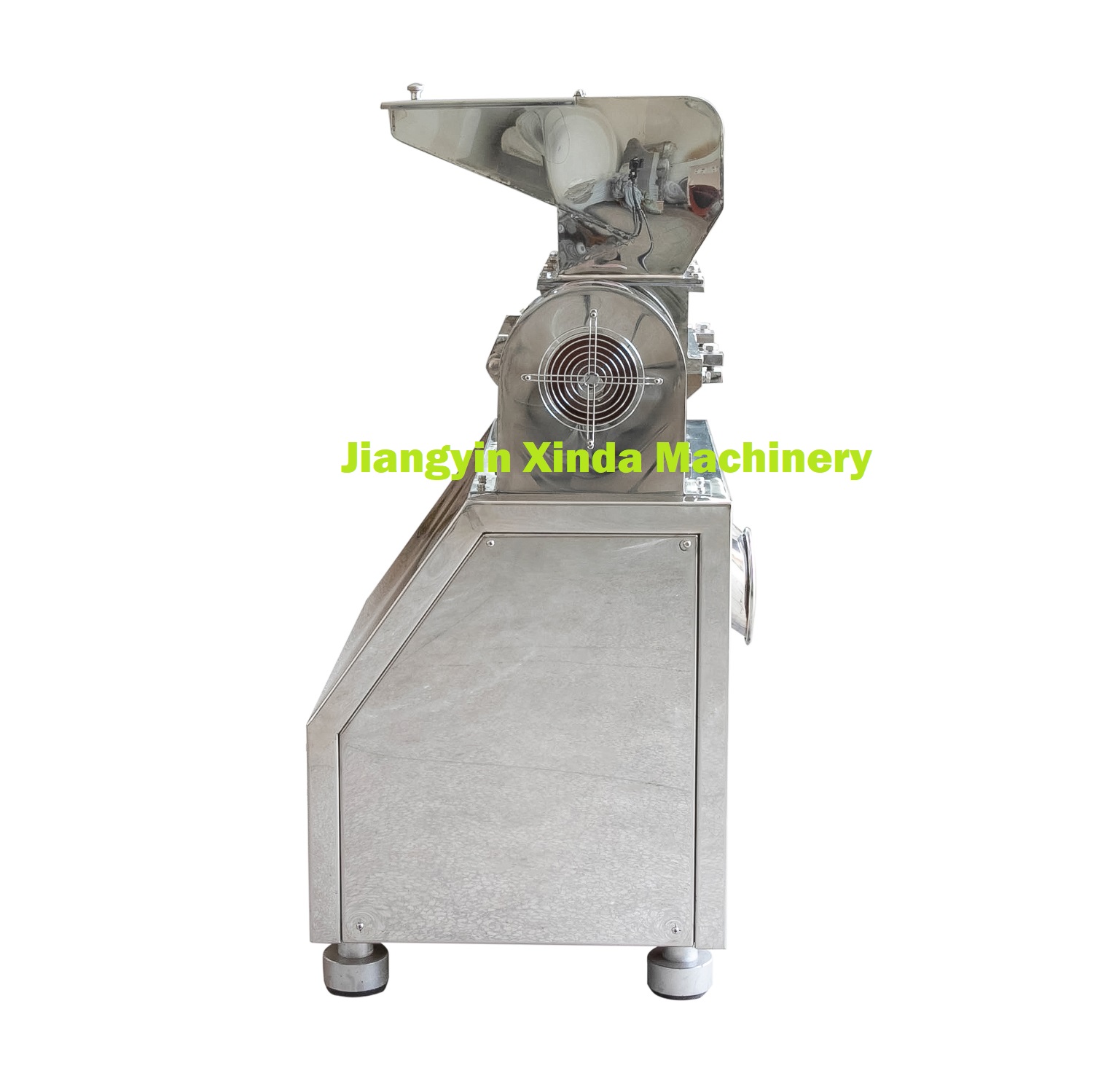

Industrial Coarse Crusher
The CSJ Series Coarse Crusher is a high-performance size reduction machine designed for demanding industrial environments including pharmaceutical, chemical, and food production. It features a horizontal crushing structure made of high-grade stainless steel to ensure durability, hygiene, and compliance with GMP standards. The machine efficiently processes tough, hard, or fibrous materials using a combination of revolving and fixed knives, while its centrifugal discharge system ensures smooth and automated operation.
Key Features
- Material Versatility
- PharmaceuticalChemicalMetallurgyFoodstuffHard MaterialsTough MaterialsFibrous Materials
Technical Specifications
Performance Metrics
| Model | Capacity (kg/h) | Max Input (mm) | Power (kW) |
|---|---|---|---|
| CSJ-80 | 10-200 | 50 | 1.5 |
| CSJ-120 | 100-500 | 100 | 3 |
| CSJ-200 | 150-800 | 100 | 5.5 |
Grinding Precision
0.5 mm
Minimum Fineness
20 mm
Maximum Fineness
400 r/min
Principal Axis Speed
Compliance and Build
Stainless SteelGMP StandardHorizontal StructureLow Noise
